Installation [08/2020 - ]: Procedure

  1. INSTALL SUSPENSION TOWER DAMPER
    1. Using a union nut wrench, install the suspension tower damper to the vehicle with the 2 nuts.

      Specified tightening torque

      Torque: 35 N.m (357 kgf/cm, 26 ft.lbf)

      NOTE:

      Do not extend or compress the damper.

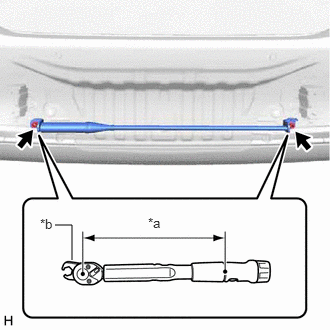

      GTY830420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      *b Union Nut Wrench

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [06/2018 - ]

      • When using a union nut wrench (fulcrum length of 25 mm (0.984 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

        30 N.m (306 kgf/cm, 22 ft.lbf)

  2. INSTALL REAR NO. 1 FLOOR BOARD (for 2GR-FKS)
    1. Install the rear No. 1 floor board with the 3 grommets (B) and 2 clips (C).

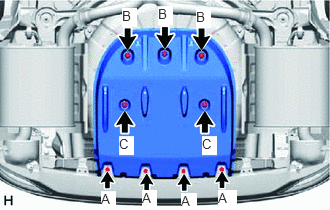

      GTY794516Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 clips (A).
  3. INSTALL REAR FLOOR SIDE MEMBER COVER (for A25A-FXS)
    1. Install the rear floor side member cover with the 3 grommets (B) and 2 clips (C).

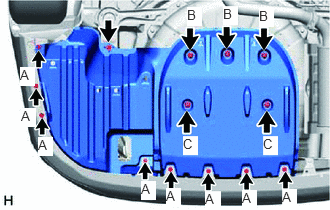

      GTY800243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt and 8 clips (A).

      Bolt

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)

  4. INSTALL REAR FLOOR SIDE MEMBER COVER (for A25A-FKS)
    1. Install the rear floor side member cover with the 3 grommets (B) and 2 clips (C).

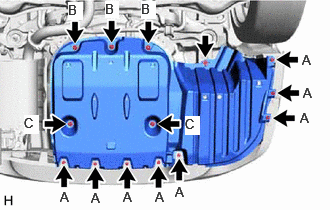

      GTY957582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt and 8 clips (A).

      Bolt

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
