Home >> Lexus >> 2019 >> ES 350 Luxury >> Repair and Diagnosis >> Suspension >> Rear Suspension >> Suspension System (Rear) - Service Information (1 Of 2) >> Performance Damper >> Components [08/2020 - ]

Components [08/2020 - ]

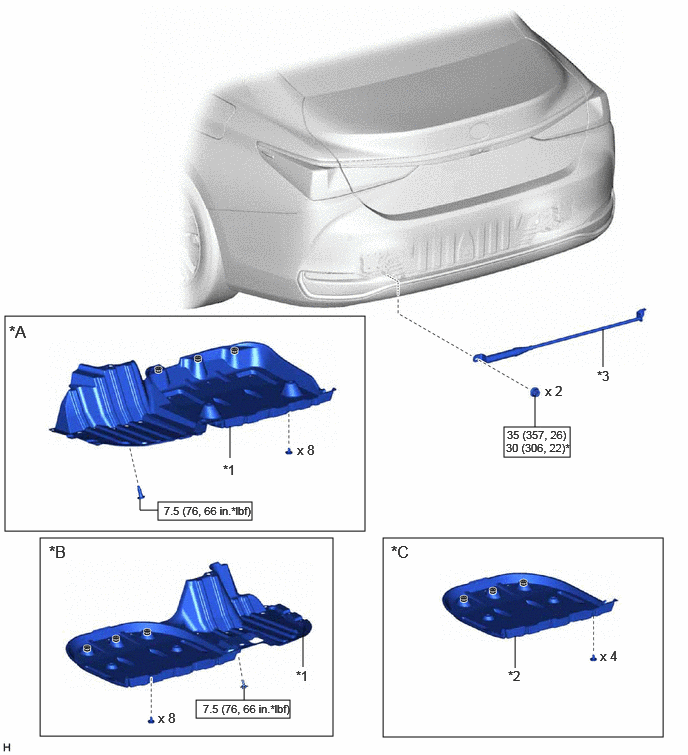

Fig 1: Performance Damper Replacement Components With Torque Specifications [08/2020 - ]
GTY957703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for A25A-FKS *B for A25A-FXS
*C for 2GR-FKS - -
*1 REAR FLOOR SIDE MEMBER COVER *2 REAR NO. 1 FLOOR BOARD
*3 SUSPENSION TOWER DAMPER - -
N.m (kgf/cm, ft.lbf): Specified torque * For use with a union nut wrench
