Suspension System (Rear) - Service Information (1 Of 2)
>>
Performance Damper
>>
Components [06/2018 - 08/2020]
Components [06/2018 - 08/2020]

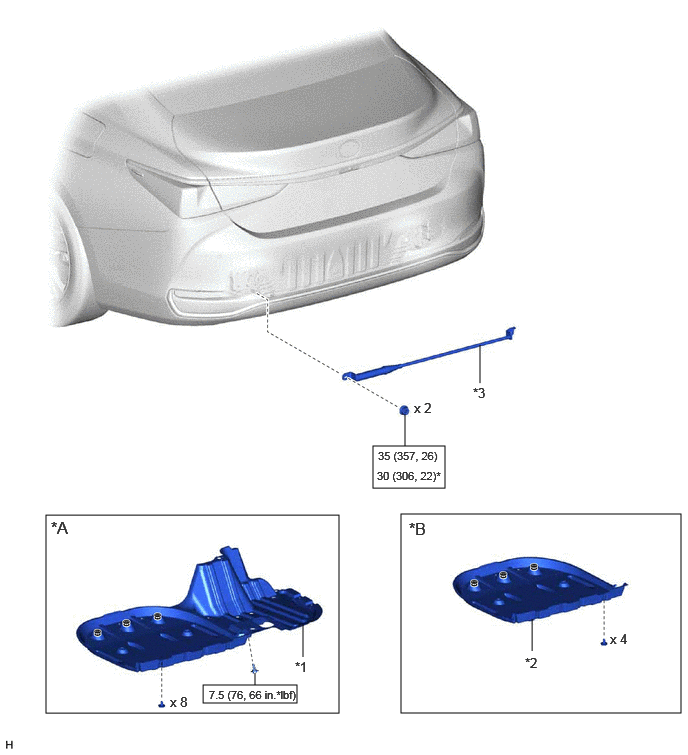

Fig 1: Performance Damper Replacement Components With Torque Specifications [06/2018 - 08/2020]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for A25A-FXS
*B
for 2GR-FKS
*1
REAR FLOOR SIDE MEMBER COVER
*2
REAR NO. 1 FLOOR BOARD
*3
SUSPENSION TOWER DAMPER
-
-
N.m (kgf/cm, ft.lbf): Specified torque
*
For use with a union nut wrench
