Removal [08/2020 - ]: Procedure

REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
for A25A-FKS: Refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

for A25A-FXS: Refer to PROCEDURE - Step 7 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

for 2GR-FKS: Refer to PROCEDURE - Step 7 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]
REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
for A25A-FKS: Refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

for A25A-FXS: Refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

for 2GR-FKS: Refer to PROCEDURE - Step 8 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]
REMOVE NO. 1 ENGINE UNDER COVER
for A25A-FKS: Refer to PROCEDURE - Step 10 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - ]

for A25A-FXS: Refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

for 2GR-FKS: Refer to PROCEDURE - Step 9 [10/2019 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

REMOVE SUSPENSION TOWER DAMPER

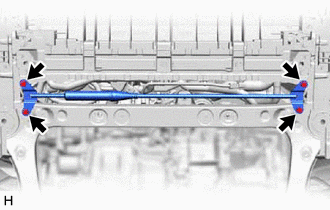

Remove the 4 bolts and suspension tower damper from the front bumper extension sub-assembly LH and front bumper extension sub-assembly RH.

NOTE:

Do not extend or compress the damper.
