Removal [01/2020 - 09/2022]: Procedure

REMOVE FRONT WHEEL
Refer to PROCEDURE - Step 1
REMOVE COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY
Refer to REMOVAL [06/2018 - ]

SEPARATE FRONT STABILIZER LINK ASSEMBLY

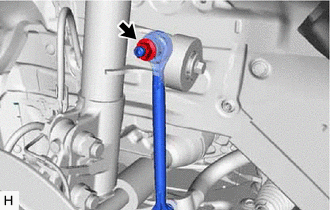

Remove the nut and separate the front stabilizer link assembly from the front shock absorber assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Do not damage the boot of the ball joint.

HINT:

If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

SEPARATE FRONT SPEED SENSOR (w/o AVS)

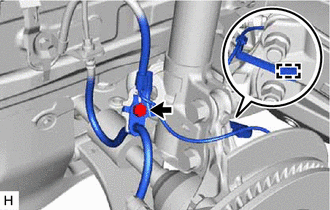

Remove the bolt, disengage the clamp and separate the front speed sensor and front flexible hose from the front shock absorber assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be sure to separate the front speed sensor and front flexible hose from the front shock absorber assembly completely.

SEPARATE FRONT SPEED SENSOR (w/ AVS)

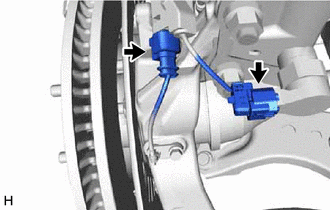

Disconnect the front speed sensor wire connector from the sensor bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disconnect the AVS connector from the absorber control actuator.

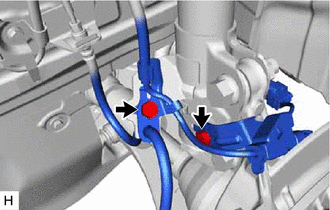

Remove the 2 bolts and separate the front speed sensor wire and front flexible hose from the front shock absorber assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

Be sure to separate the front speed sensor wire and front flexible hose from the front shock absorber assembly completely.

LOOSEN FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

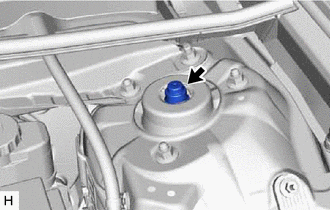

Remove the front shock absorber lock nut cap from the front support to front shock absorber nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

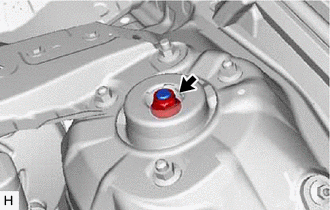

Loosen the front support to front shock absorber nut.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

WARNING:

Only loosen the front support to front shock absorber nut if the front shock absorber with coil spring needs to be disassembled.
Only loosen the front support to front shock absorber nut, do not remove it.
If the front support to front shock absorber nut is removed with the front coil spring under tension, components of the front shock absorber with coil spring may fly off.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING

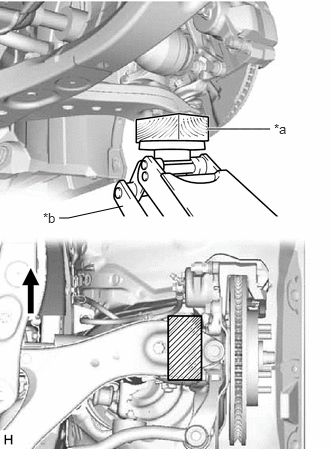

Support the front lower No. 1 suspension arm sub-assembly using a jack and wooden block.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Wooden Block
*b	Jack
	Front of the Vehicle
	Wooden Block Placement Location

NOTE:

Keep the front lower No. 1 suspension arm sub-assembly supported until installation of the front shock absorber with coil spring is complete.

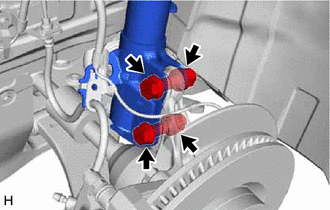

Remove the 2 bolts and 2 nuts, and separate the front shock absorber with coil spring (lower side) from the steering knuckle.

NOTE:

When removing the nuts, keep the bolts from rotating.
Use wire or an equivalent tool to hang the separated steering knuckle.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

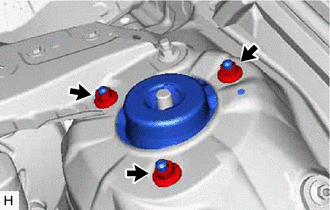

Remove the 3 nuts and front shock absorber with coil spring.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE FRONT SUPPORT TO FRONT SHOCK ABSORBER NUT

w/o AVS:

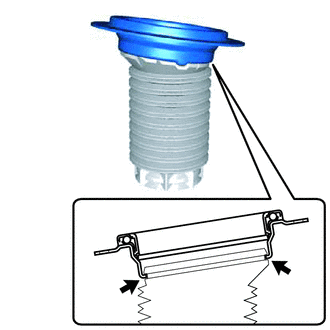

Disengage the end of the front No. 1 shock absorber dust cover from the claws of the front shock absorber assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Front No. 1 Shock Absorber Dust Cover
*a	Claw

Fold back the front No. 1 shock absorber dust cover.

NOTE:

Check that the front No. 1 shock absorber dust cover is not excessively deformed or crushed.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a piece of cloth, etc., clean the shock rod and remove any foreign matter and oil.

NOTE:

Thoroughly clean the shock rod to prevent damage to the shock rod due to contact of foreign matter.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Cloth, etc.
*b	Shock Rod

Attach SST (09727-58100) to SST (09727-58130).

SST: 09727-58100
SST: 09727-58130

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	SST(09727-58100)
*2	SST(09727-58130)

NOTE:

Check that there are no cracks or damage in SST (09727-58130) that could prevent it from securing the shock rod of the front shock absorber assembly.

If there are, replace SST (09727-58130) with a new one.

Clean the surface of SST (09727-58130) to which the front shock absorber assembly is installed and remove any foreign matter and oil.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Installation Surface

NOTE:

Thoroughly clean the installation surface to prevent damage to the shock rod due to contact of foreign matter.

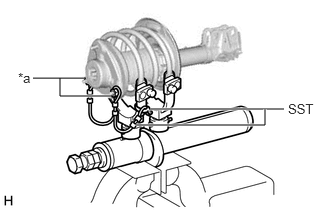

Using a long ball hexagon 5, install SST (09727-58100) and SST (09727-58130) to the shock rod.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

When installing SST (09727-58100) and SST (09727-58130), do not fold back the front No. 1 shock absorber dust cover in an improper direction and deform it.

HINT:

Install SST (09727-58100) and SST (09727-58130) to the base of the shock rod and check that SST (09727-58100) and SST (09727-58130) are securing the shock rod.
The front shock absorber assembly has a built-in rebound spring and is constructed to constantly contract the shock rod.
For this reason, it is difficult to sufficiently contract the coil spring to a level that frees the front suspension support sub-assembly using only the coil spring compressor (09727-30022), making it necessary for SST (09727-58100), SST (09727-58130) and a long ball hexagon 5 to be used to ensure a shock rod free length in which work can be performed with a small amount of compression.

Secure SST in a vise.

SST: 09727-00051
SST: 09727-30022
1. 09727-00010
2. 09727-00031

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

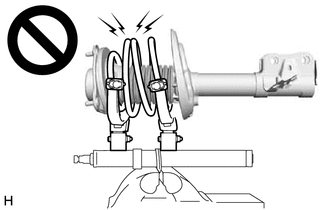

Attach the hooks of each SST arm across the diameter of the coil spring.

WARNING:

Make sure that the hooks are securely attached to the coil spring.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

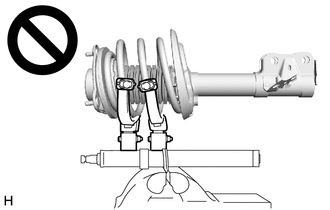

Make sure that the hooks of the upper and lower SST arms are attached to the coil spring so that the distance between the hooks is as large as possible.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

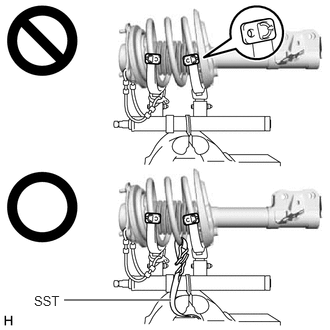

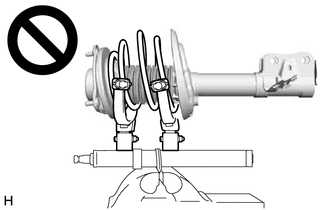

Make sure that the arms of SST are parallel and the number of coils between the arms is the same on each side.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

Install the stopper pins to the hooks of SST.

WARNING:

Make sure that the stopper pins are installed securely.
If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Install SST and 2 vehicle nuts to the upper support as shown in the illustration.

SST: 09727-30022
1. 09727-00090
2. 09727-00100

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Vehicle Nut

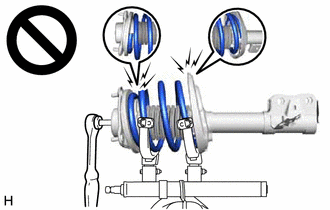

Using SST, compress the coil spring.

WARNING:

If the coil spring starts to bow out while using SST, stop immediately and reattach SST correctly.

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

Do not compress the coil spring to the point where the coils touch each other.

If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

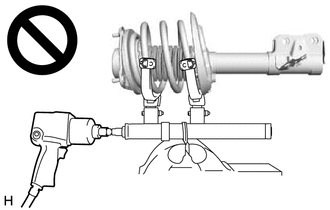

Do not use an impact wrench.

If an impact wrench is used, the threads of SST may be damaged, or sudden compression of the coil spring may cause a hook to disengage and the coil spring to fly out, resulting in injury.

If a stopper pin touches the coil spring while using SST, remove the stopper pin and continue with the procedure.

If a stopper pin is removed, install a coil spring stopper belt as shown in the illustration.
If a hook disengages from the coil spring, the coil spring may fly out, resulting in injury.

SST: 09727-00110

Check that the coil spring has become detached, and then remove the front support to front shock absorber nut.

WARNING:

Do not remove the front support to front shock absorber nut while the coil spring is under tension.
If the front support to front shock absorber nut is removed with the coil spring under tension, components of the front shock absorber with coil spring may fly off, resulting in injury.

REMOVE FRONT SUSPENSION SUPPORT SUB-ASSEMBLY
1. Remove the front suspension support sub-assembly from the front shock absorber assembly.

REMOVE STRUT MOUNTING BEARING WITH DUST COVER

w/ AVS:

Disengage the end of the front No. 1 shock absorber dust cover from the claws of the front shock absorber assembly.

*1	Front No. 1 Shock Absorber Dust Cover
*a	Claw

Remove the strut mounting bearing with dust cover from the front shock absorber assembly.

REMOVE FRONT UPPER COIL SPRING INSULATOR

Remove the front upper coil spring insulator from the strut mounting bearing.

REMOVE STRUT MOUNTING BEARING

Disengage the top end of the front No. 1 shock absorber dust cover to remove the strut mounting bearing from the shock absorber dust cover.

REMOVE FRONT COIL SPRING
1. Remove the front coil spring and SST.
  NOTE:
  Do not use an impact wrench. It will damage SST.
REMOVE FRONT SPRING BUMPER
1. Remove the front spring bumper from the front shock absorber assembly.
REMOVE FRONT LOWER COIL SPRING INSULATOR
1. Remove the front lower coil spring insulator from the front shock absorber assembly.
REMOVE FRONT SHOCK ABSORBER ASSEMBLY (w/ AVS)

REMOVE FRONT SHOCK ABSORBER ASSEMBLY (w/o AVS)

Using SST (09727-58010), remove SST (09727-58100) and SST (09727-58130) from the front shock absorber assembly.

SST: 09727-58010
1. 09727-58030

*1	Front Shock Absorber Assembly	*2	Shock Absorber Outer Shell
*a	Turn	*b	Hold
*c	Fixing Nut	*d	Bolt

NOTE:

Apply molybdenum grease to the bolt (area with diagonal lines) of SST (09727-58010).

Application Area

Install SST (09727-58030) to the end of the shock rod of the front shock absorber assembly.[#1]
Install SST (09727-58010) to the front shock absorber assembly.[#2]
NOTE:
Take due care when installing SST (09727-58010) to ensure the shock rod is not damaged.
Secure the SST (09727-58010) bolt and SST (09727-58030) with the fixing nut.[#3]
After securing the SST (09727-58010) bolt, rotate the nut clockwise.[#4]
NOTE:
Extend the shock rod until SST (09727-58100) and SST (09727-58130) separate from the shock absorber outer shell.
Using a long ball hexagon 5, remove SST (09727-58100) and SST (09727-58130).[#5]
NOTE:
If SST (09727-58100) and SST (09727-58130) are removed without using SST (09727-58010), the action of the rebound spring will cause the shock rod to contract suddenly. Therefore, remove SST (09727-58100) and SST (09727-58130) after securing the shock rod with SST (09727-58010).
Using a piece of cloth, etc., clean the shock rod of the front shock absorber assembly and remove any foreign matter and oil.
NOTE:
If the shock rod is expanded/contracted while foreign matter or oil are still present, it may damage the front shock absorber assembly or cause oil leaks.
After securing the SST (09727-58010) bolt, rotate the nut counterclockwise.
Check that the shock rod and SST (09727-58030) have become free before releasing the fixing nut and removing SST (09727-58010) from the end of the shock rod.
NOTE:
Take due care when removing SST (09727-58010) to ensure the shock rod is not damaged.
Remove SST (09727-58030) from the end of the shock rod.
Using a piece of cloth, etc., clean the end of the shock rod threads and remove any foreign matter and oil.
