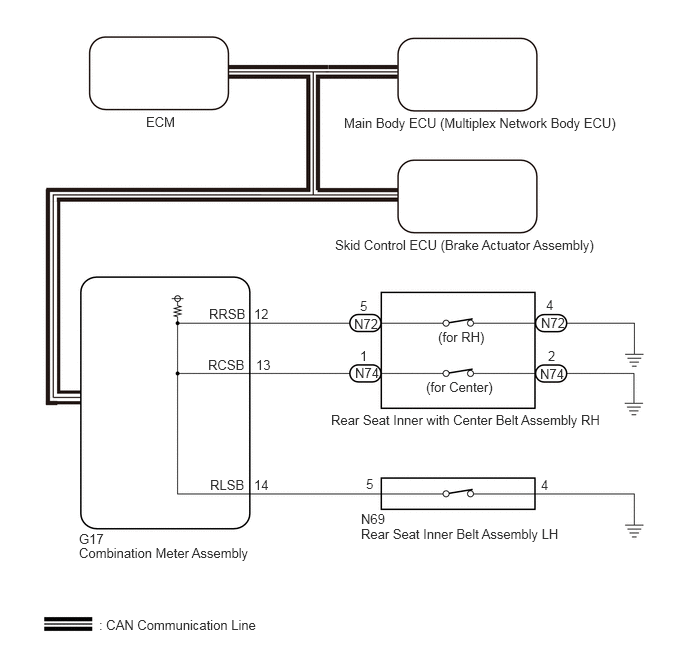

Rear Seat Belt Warning Light Malfunction [07/2019 - ]: Wiring Diagram

GTY950528

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
