Rear Seat Belt Warning Light Malfunction [06/2018 - 07/2019]: Procedure

  1. READ VALUE USING TECHSTREAM (REAR DOOR COURTESY LIGHT SWITCH)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Main Body / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Main Body > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      RR Door Courtesy SW Rear door courtesy light switch RH ON or OFF ON: Rear door RH open
      OFF: Rear door RH closed      		 -
      RL Door Courtesy SW Rear door courtesy light switch LH ON or OFF ON: Rear door LH open
      OFF: Rear door LH closed      		 -

      Body Electrical > Main Body > Data List

      Tester Display
      RR Door Courtesy SW
      RL Door Courtesy SW

      OK

      The Techstream display changes correctly in response to the rear door condition.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    GO TO LIGHTING SYSTEM. Refer to  Rear Door Courtesy Switch Circuit [06/2018 - ]

    Result:

    OK

    See step  2

  2. CHECK REAR SEAT BELT WARNING
    1. Check the rear seat belt warning function.

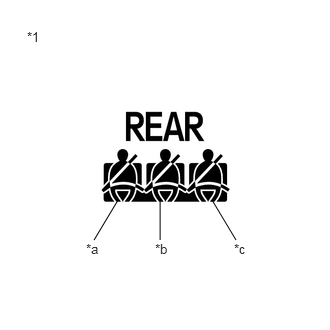

      GTY810186Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear Seat Belt Warning Light (Combination Meter Assembly)
      *a LH
      *b Center
      *c RH

      Refer to ON-VEHICLE INSPECTION [06/2018 - 07/2019]

      Result

      Result Proceed to
      The rear seat belt warning lights operation is normal A
      The rear seat belt warning lights (all seats) do not operate normally B
      The rear seat belt warning light (LH) does not operate normally C
      The rear seat belt warning light (center) does not operate normally D
      The rear seat belt warning light (RH) does not operate normally E

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  PROBLEM SYMPTOMS TABLE [06/2018 - ]

    Result:

    B

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    D

    See step  5

    Result:

    E

    See step  7

    Result:

    C

    See step  3

  3. READ VALUE USING TECHSTREAM (REAR SEAT BELT BUCKLE SWITCH (FOR LH))
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Rear Left Seat Buckle / Occupant Detection Warning Switch Rear seat inner belt LH buckle signal ON or OFF OFF: Rear LH seat belt fastened
      ON: Rear LH seat belt not fastened      		 -

      Body Electrical > Combination Meter > Data List

      Tester Display
      Rear Left Seat Buckle / Occupant Detection Warning Switch

      Result

      Result Proceed to
      ON or OFF does not appear on the tester screen according to the rear seat belt condition A
      ON or OFF appears on the tester screen according to the rear seat belt condition B

    Result:

    B

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    A

    See step  4

  4. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR SEAT INNER BELT ASSEMBLY LH - BODY GROUND)
    1. Disconnect the G17 combination meter assembly connector.
    2. Disconnect the N69 rear seat inner belt assembly LH connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G17-14 (RLSB) - N69-5 Always Below 1 Ω
      G17-14 (RLSB) or N69-5 - Body ground Always 10 kΩ or higher
      N69-4 - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR SEAT INNER BELT ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  5. READ VALUE USING TECHSTREAM (REAR SEAT BELT BUCKLE SWITCH (FOR CENTER))
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Rear Center Seat Buckle / Occupant Detection Warning Switch Rear seat inner with center belt LH (for center) buckle signal ON or OFF OFF: Rear LH seat belt (for center) fastened
      ON: Rear LH seat belt (for center) not fastened      		 -

      Body Electrical > Combination Meter > Data List

      Tester Display
      Rear Center Seat Buckle / Occupant Detection Warning Switch

      Result

      Result Proceed to
      ON or OFF does not appear on the tester screen according to the rear seat belt condition A
      ON or OFF appears on the tester screen according to the rear seat belt condition B

    Result:

    B

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    A

    See step  6

  6. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (FOR CENTER) - BODY GROUND)
    1. Disconnect the G17 combination meter assembly connector.
    2. Disconnect the N74 rear seat inner with center belt assembly RH (for center) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G17-13 (RCSB) - N74-1 Always Below 1 Ω
      G17-13 (RCSB) or N74-1 - Body ground Always 10 kΩ or higher
      N74-2 - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  7. READ VALUE USING TECHSTREAM (REAR SEAT BELT BUCKLE SWITCH (FOR RH))
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Data List.
    5. Read the Data List according to the display on the Techstream.

      Body Electrical > Combination Meter > Data List

      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      Rear Right Seat Buckle / Occupant Detection Warning Switch Rear seat inner with center belt RH (for RH) buckle signal ON or OFF OFF: Rear RH seat belt (for RH) fastened
      ON: Rear RH seat belt (for RH) not fastened      		 -

      Body Electrical > Combination Meter > Data List

      Tester Display
      Rear Right Seat Buckle / Occupant Detection Warning Switch

      Result

      Result Proceed to
      ON or OFF does not appear on the tester screen according to the rear seat belt condition A
      ON or OFF appears on the tester screen according to the rear seat belt condition B

    Result:

    B

    REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    A

    See step  8

  8. CHECK HARNESS AND CONNECTOR (COMBINATION METER ASSEMBLY - REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH (FOR RH) - BODY GROUND)
    1. Disconnect the G17 combination meter assembly connector.
    2. Disconnect the N72 rear seat inner with center belt assembly RH (for RH) connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      G17-12 (RRSB) - N72-5 Always Below 1 Ω
      G17-12 (RRSB) or N72-5 - Body ground Always 10 kΩ or higher
      N72-4 - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 08/2021]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
