Parts Location [07/2019 - ]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

BRAKE ACTUATOR ASSEMBLY - SKID CONTROL ECU

*2

ECM

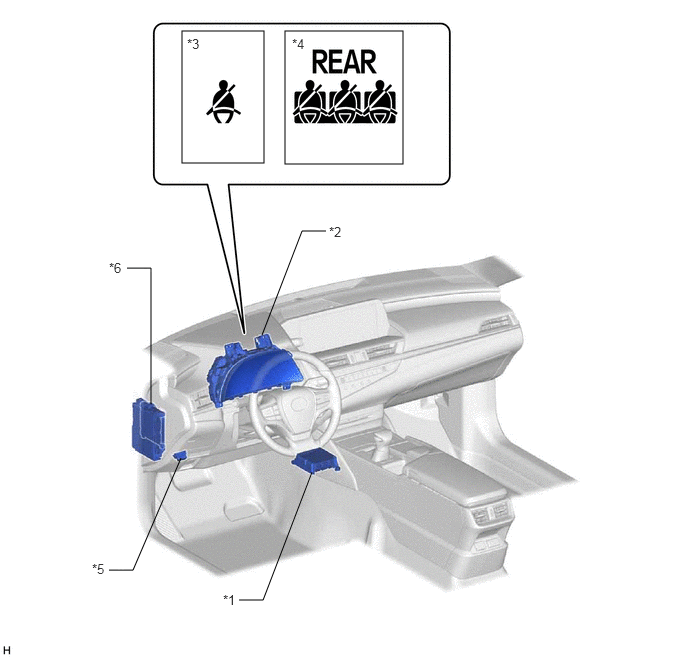

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	AIRBAG ECU ASSEMBLY	*2	COMBINATION METER ASSEMBLY - SEAT BELT WARNING BUZZER
*3	SEAT BELT WARNING LIGHT	*4	REAR SEAT BELT WARNING LIGHT
*5	DLC3	*6	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	OCCUPANT DETECTION ECU	*2	FRONT SEAT INNER BELT ASSEMBLY LH
*3	FRONT SEAT INNER BELT ASSEMBLY RH	*4	FRONT OCCUPANT CLASSIFICATION SENSOR LH
*5	REAR OCCUPANT CLASSIFICATION SENSOR LH	-	-

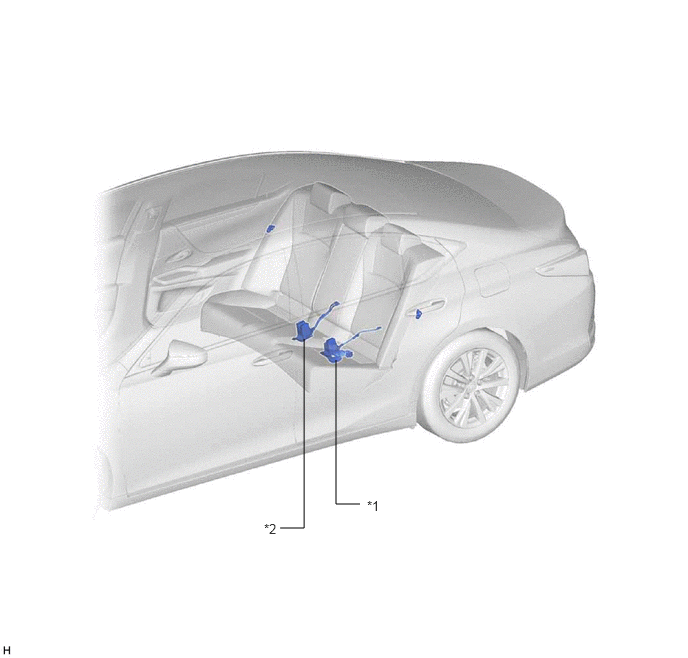

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1

REAR SEAT INNER BELT ASSEMBLY LH

*2

REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH
