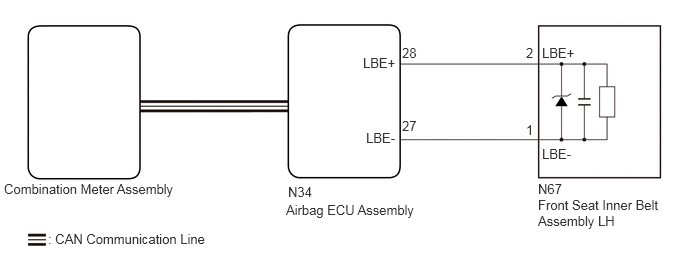

Driver Side Seat Belt Warning Light does not Operate [06/2018 - ]: Wiring Diagram

GTY813869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
