Components [06/2018 - ]

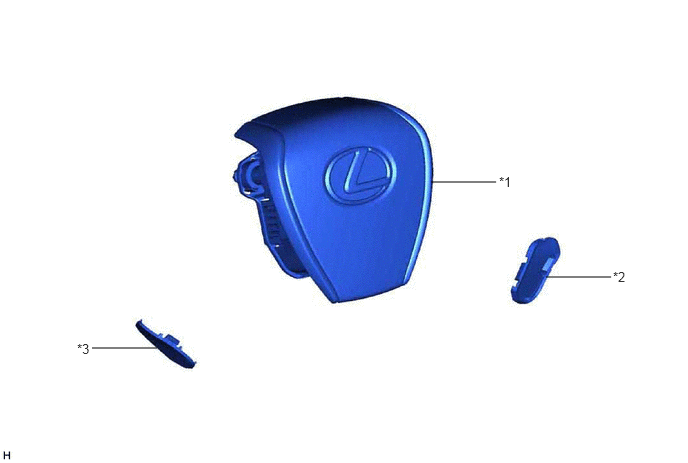

Fig 1: Spiral Cable Replacement Components [06/2018 - ] (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	HORN BUTTON ASSEMBLY	*2	LOWER NO. 2 STEERING WHEEL COVER
*3	LOWER NO. 3 STEERING WHEEL COVER	-	-

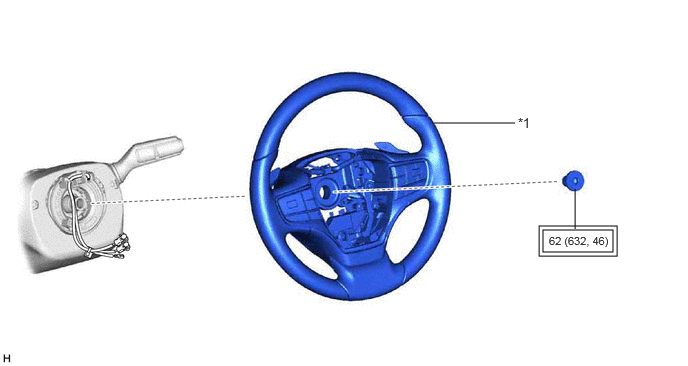

Fig 2: Spiral Cable Replacement Components With Torque Specifications [06/2018 - ] (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STEERING WHEEL ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	-	-

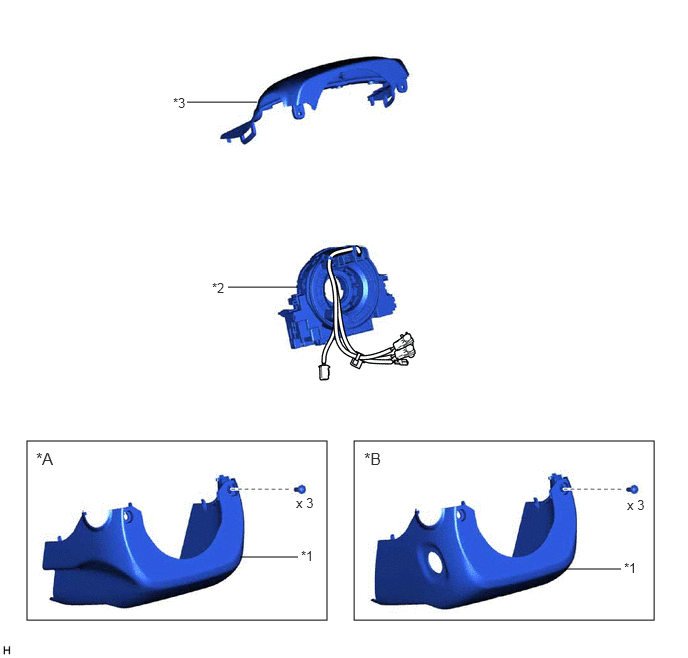

Fig 3: Spiral Cable Replacement Components [06/2018 - ] (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Manual Tilt and Manual Telescopic Steering Column	*B	for Power Tilt and Power Telescopic Steering Column
*1	LOWER STEERING COLUMN COVER SUB-ASSEMBLY	*2	SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
*3	UPPER STEERING COLUMN COVER	-	-

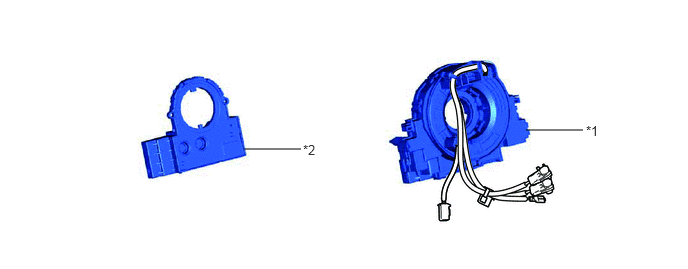

Fig 4: Spiral Cable Replacement Components [06/2018 - ] (4 Of 4)

SPIRAL CABLE SUB-ASSEMBLY

STEERING SENSOR
