Removal [06/2018 - 08/2021]: Procedure

Refer to PROCEDURE - Step 1

Refer to REMOVAL [06/2018 - ]

Refer to REMOVAL [06/2018 - 09/2022]

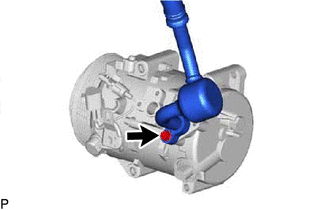

1. Remove the bolt and disconnect the No. 1 cooler refrigerant discharge hose from the compressor assembly with magnetic clutch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the No. 1 cooler refrigerant discharge hose.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

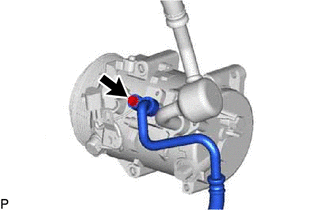

1. Remove the bolt and disconnect the suction hose from the compressor assembly with magnetic clutch.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the O-ring from the suction hose.
   NOTE:

   Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

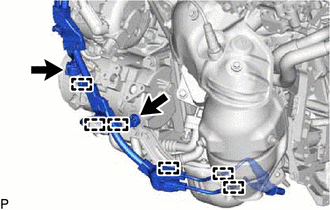

1. Disconnect each connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage each clamp.
3. for Type A:

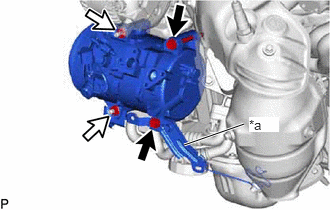

   1. Remove the 2 bolts and 2 nuts, and separate the bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a	Bracket
      	Bolt
      	Nut

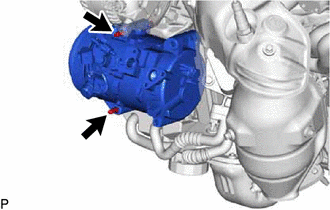

   2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. for Type B:

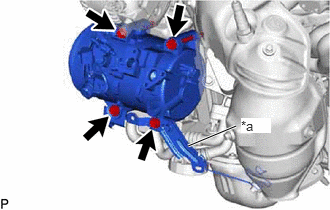

   1. Remove the 4 bolts and separate the bracket.

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      *a

      Bracket

5. Remove the compressor assembly with magnetic clutch.
