Removal [06/2018 - ]: Procedure

  1. REMOVE COOLER CONTROL SWITCH ASSEMBLY

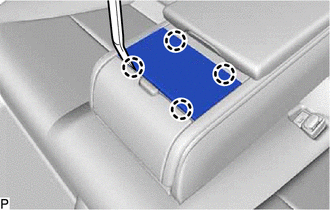

    1. Using a moulding remover, disengage the 4 claws.
      GTY806783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect each connector to remove the cooler control switch assembly.
