Removal [06/2018 - 08/2021]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 4

  2. REMOVE COWL SIDE TRIM BOARD RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 5

  3. REMOVE FRONT DOOR OPENING TRIM COVER RH

    HINT:

    Use the same procedure as for the LH side.

    Refer to PROCEDURE - Step 6

  4. REMOVE INSTRUMENT SIDE PANEL RH

    Refer to PROCEDURE - Step 23

  5. REMOVE LOWER INSTRUMENT PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 27

  6. REMOVE NO. 2 INSTRUMENT CLUSTER MOULDING

    Refer to PROCEDURE - Step 30

  7. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

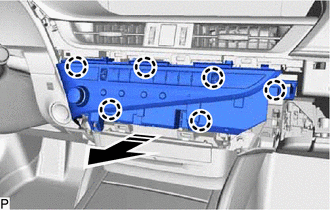

    1. Disengage the 6 claws as shown in the illustration.
      GTY828618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
    2. Disconnect the connector to remove the air conditioning control assembly.
