Disassembly [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FUEL SENDER GAUGE ASSEMBLY
See step 2 [08/2021 - 09/2022], or see step 2 [08/2021 - 09/2022], or see step 2 [09/2022 - ]

REMOVE FUEL PUMP

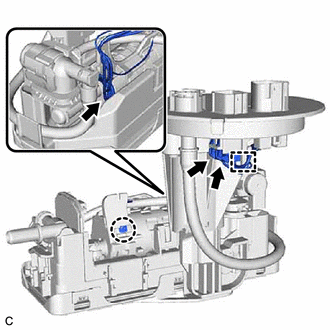

Disconnect the 3 fuel pump harness connectors.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

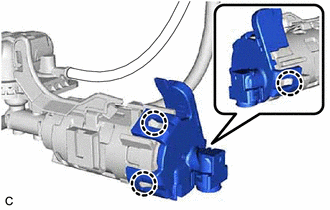

Disengage the claw and disconnect the ground terminal of the fuel pump harness.

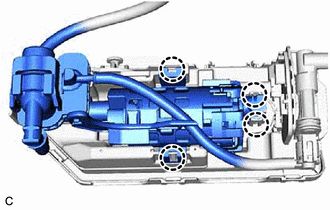

Disengage the clamp to remove the fuel pump harness from the fuel suction tube with pump and gauge assembly.
NOTE:
- Do not damage the wire harness.
- When disengaging each wire harness from the clamp, disengage one wire at a time.

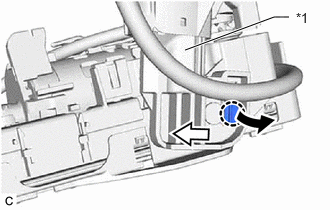

Disengage the claw and slide the fuel suction plate sub-assembly and then separate it from the fuel sub-tank sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Fuel Suction Plate Sub-assembly
	Pull
	Slide

Disengage the 4 claws and remove the fuel suction plate sub-assembly from the fuel sub-tank sub-assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Disengage the 3 claws and remove the No. 2 fuel suction support from the fuel suction plate sub-assembly.

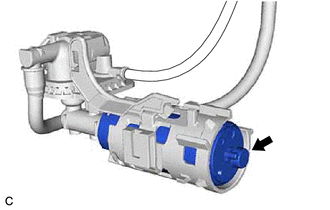

Remove the fuel pump from the fuel suction plate sub-assembly.

Remove the O-ring and fuel pump spacer from the fuel pump.

*1	O-ring
*2	Fuel Pump Spacer
