Removal [08/2020 - 08/2021]: Procedure
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
- REMOVE REAR SEAT ASSEMBLY
Refer to REMOVAL [08/2020 - 08/2021]
- REMOVE REAR DOOR SCUFF PLATE LH
Refer to PROCEDURE - Step 8
- REMOVE REAR SEAT SIDE GARNISH LH
Refer to PROCEDURE - Step 19
- REMOVE FUEL PUMP CONTROL ECU
- w/ Silencer Sheet:

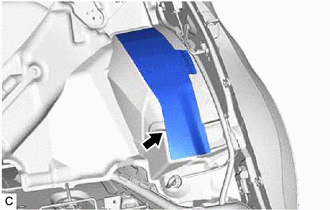

- Remove the No. 2 room partition panel silencer sheet from the room partition panel insulator.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

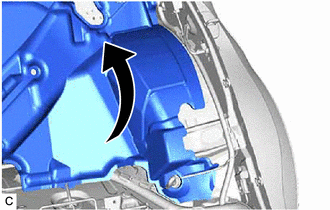

- Turn back the room partition panel insulator.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

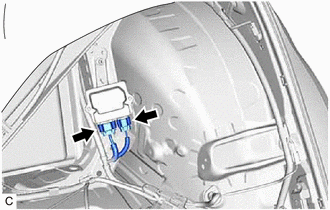

- Disconnect the 2 fuel pump control ECU connectors.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

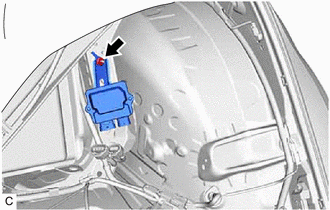

- Remove the nut and fuel pump control ECU from the vehicle body.
NOTE:
Do not reuse the fuel pump control ECU if it has been dropped or subjected to a severe impact.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|
- REMOVE FUEL PUMP CONTROL ECU BRACKET
- Remove the 2 bolts and fuel pump control ECU bracket from the fuel pump control ECU.
