Removal [08/2020 - 08/2021]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FUEL PUMP ASSEMBLY

    Refer to REMOVAL [08/2020 - 08/2021]

  2. REMOVE NO. 2 FUEL PRESSURE SENSOR

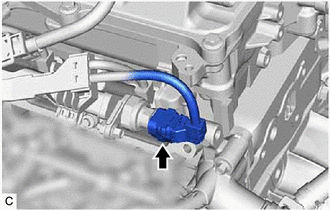

    1. Disconnect the No. 2 fuel pressure sensor connector.
      GTY948293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

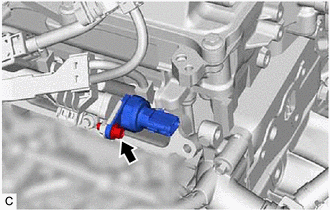

    2. Using an 8 mm socket wrench, remove the bolt, No. 2 fuel pressure sensor and No. 2 fuel pressure sensor holder from the fuel delivery pipe sub-assembly.
      GTY948291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the O-ring from the No. 2 fuel pressure sensor.
      GTY823425Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
