Components [08/2020 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

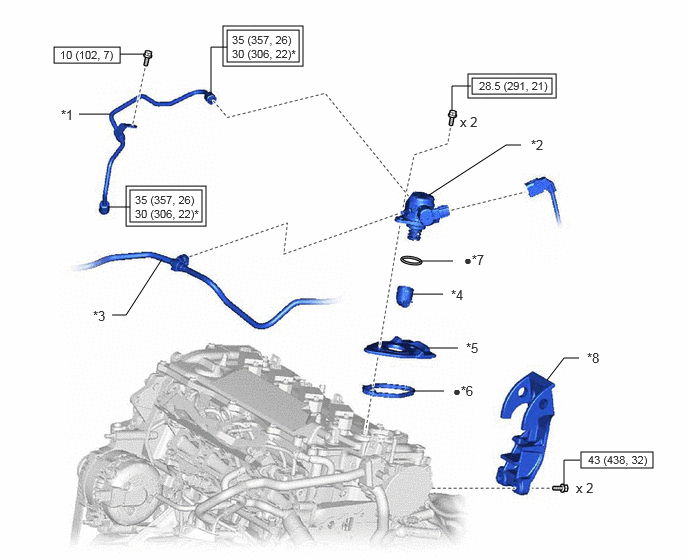

| *1 | NO. 1 FUEL PIPE SUB-ASSEMBLY | *2 | FUEL PUMP ASSEMBLY |
| *3 | FUEL TUBE SUB-ASSEMBLY | *4 | FUEL PUMP LIFTER ASSEMBLY |
| *5 | FUEL PUMP FLANGE | *6 | FUEL PUMP SPACER GASKET |
| *7 | O-RING | *8 | FUEL PUMP PROTECTOR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| * | For use with a union nut wrench | • | Non-reusable part |
