Removal [08/2020 - 08/2021]: Procedure
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
- PRECAUTION NOTE:
After turning the engine switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.
- DISCHARGE FUEL SYSTEM PRESSURE
Refer to PRECAUTION [08/2020 - ]
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
Refer to PROCEDURE - Step 1
- REMOVE INTAKE MANIFOLD
Refer to REMOVAL [08/2020 - 08/2021]
- REMOVE FUEL PRESSURE SENSOR WARNING:
To prevent serious injury due to fuel spray from the high-pressure fuel lines, always discharge fuel system pressure before removing any fuel system components.

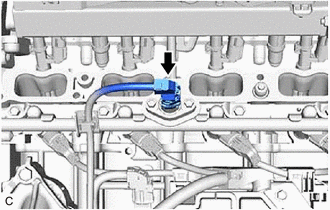

- Disconnect the fuel pressure sensor connector.

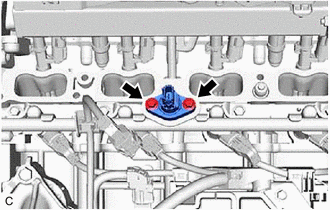

- Using an 8 mm socket wrench, remove the 2 bolts, fuel pressure sensor and No. 1 fuel pressure sensor holder from the fuel delivery pipe.NOTE:
- Pull and remove the fuel pressure sensor in a straight line to avoid damaging the seal surface of the fuel delivery pipe O-ring.
- After removing the fuel pressure sensor, remove any O-ring and fuel injector back-up rings remaining on the fuel delivery pipe side.
- Disconnect the fuel pressure sensor connector.
