Removal [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE PURGE VALVE (PURGE VSV)
    1. Disconnect the purge valve (purge VSV) connector.

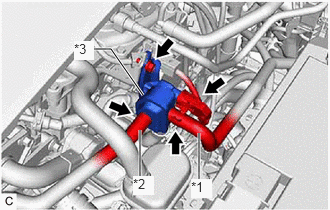

      GTY947544Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Fuel Vapor Feed Hose
      *2 No. 2 Fuel Vapor Feed Hose
      *3 Purge Valve (Purge VSV)
    2. Slide the clip and disconnect the No. 1 fuel vapor feed hose from the purge valve (purge VSV).
    3. Disconnect the No. 2 fuel vapor feed hose from the purge valve (purge VSV).
    4. Remove the bolt and purge valve (purge VSV) from the purge VSV bracket.
