Removal [08/2021 - ]: Procedure
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
- DRAIN ENGINE COOLANT
Refer to PROCEDURE - Step 1
- REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY
Refer to PROCEDURE - Step 20 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 20 [09/2022 - ]
- REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE
Refer to PROCEDURE - Step 3
- REMOVE EGR COOLER ASSEMBLY

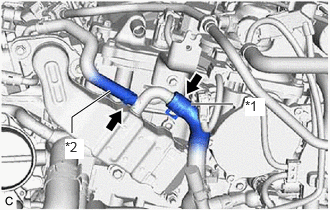

- Slide the 2 clips and disconnect the No. 3 water by-pass hose and No. 4 water by-pass hose from the EGR cooler assembly.
*1 No. 3 Water By-pass Hose *2 No. 4 Water By-pass Hose - Type A:

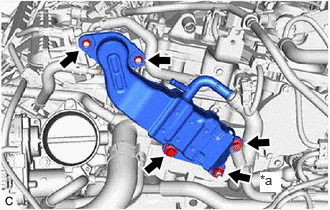

*a Bolt or Nut - Remove the 3 bolts, 2 nuts and EGR cooler assembly from the cylinder head sub-assembly and EGR valve assembly.
- Type B:
- Remove the 2 bolts, 3 nuts and EGR cooler assembly from the cylinder head sub-assembly and EGR valve assembly.
- Remove the EGR valve gasket from the EGR cooler assembly.
*1 EGR Valve Gasket *2 EGR Cooler Gasket - Remove the EGR cooler gasket from the EGR cooler assembly.
- Slide the 2 clips and disconnect the No. 3 water by-pass hose and No. 4 water by-pass hose from the EGR cooler assembly.
