Removal [08/2020 - 08/2021]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 20

  3. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  4. REMOVE EGR COOLER ASSEMBLY

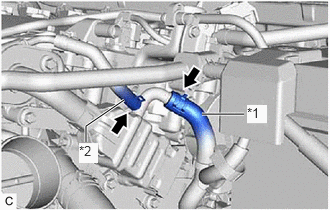

    1. Slide the 2 clips and disconnect the No. 3 water by-pass hose and No. 4 water by-pass hose from the EGR cooler assembly.
      GTY860003Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 3 Water By-pass Hose
      *2 No. 4 Water By-pass Hose

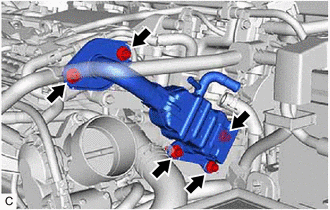

    2. Remove the 5 bolts and EGR cooler assembly from the cylinder head sub-assembly and EGR valve assembly.
      GTY771543Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

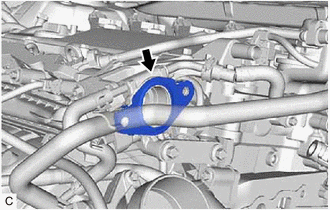

    3. Remove the EGR valve gasket from the EGR valve assembly.
      GTY754229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the EGR cooler gasket from the EGR cooler assembly.
      GTY754228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
