Installation [08/2021 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL EGR COOLER ASSEMBLY
    1. Using an 8 mm socket wrench, loosen the 4 bolts of the No. 1 EGR pipe sub-assembly.
      GTY1000497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      • As the bolts of the No. 1 EGR pipe sub-assembly are only to be loosened, it is not necessary to replace the EGR inlet gasket and EGR valve adapter gasket.
      • If the No. 1 EGR pipe sub-assembly is removed, it is necessary to replace the EGR inlet gasket and EGR valve adapter gasket with new ones.

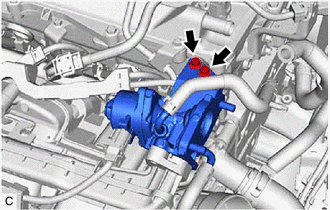

    2. Using an 8 mm socket wrench, loosen the 2 bolts of the EGR valve assembly.
      GTY1000500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install a new EGR cooler gasket to the EGR cooler assembly.
      NOTE:

      Make sure that the claws of the EGR cooler gasket are toward the EGR cooler assembly side.

      GTY1001304Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Claw
    4. Install a new EGR valve gasket to the EGR cooler assembly.
      NOTE:

      Make sure that the claws of the EGR cooler gasket are toward the EGR cooler assembly side.

    5. Type A:
      Fig 1: EGR Cooler Assembly Bolts And Nuts Tightening Sequence
      GTY1000306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt or Nut
      1. Temporarily install the EGR cooler assembly to the cylinder head sub-assembly and EGR valve assembly with the 3 bolts and 2 nuts.
      2. Tighten the 3 bolts and 2 nuts in the order shown in the illustration.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

    6. Type B:
      1. Temporarily install the EGR cooler assembly to the cylinder head sub-assembly and EGR valve assembly with the 2 bolts and 3 nuts.
      2. Tighten the 2 bolts and 3 nuts in the order shown in the illustration.

        Torque: 24 N.m (245 kgf/cm, 18 ft.lbf)

    7. Connect the No. 3 water by-pass hose and No. 4 water by-pass hose to the EGR cooler assembly and slide the 2 clips to secure them.
    8. Using an 8 mm socket wrench, tighten the 2 bolts of the EGR valve assembly.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

    9. Using an 8 mm socket wrench, tighten the 4 bolts of the No. 1 EGR pipe sub-assembly.

      Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

  2. INSTALL AIR CLEANER CAP WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 3

  3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 49

  4. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  5. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  6. INSPECT FOR EXHAUST GAS LEAK

    Refer to PROCEDURE - Step 9
