Components [08/2021 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
NO. 1 ENGINE COVER SUB-ASSEMBLY |
*2 |
AIR CLEANER CAP WITH AIR CLEANER HOSE |
| *3 |
VACUUM HOSE |
*4 |
NO. 2 VENTILATION HOSE |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

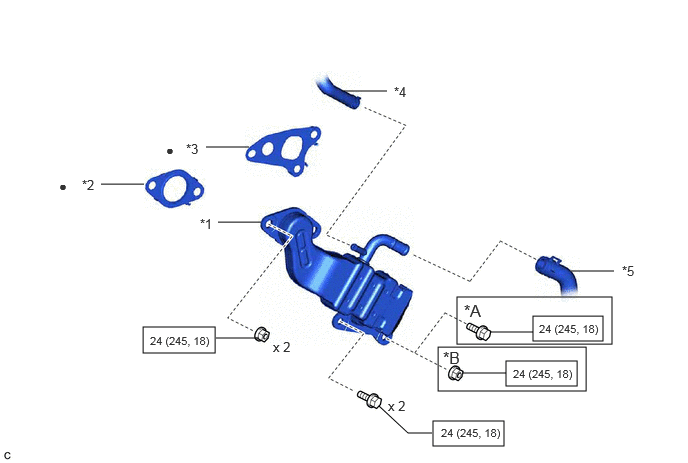

| *A |
Type A |
*B |
Type B |
| *1 |
EGR COOLER ASSEMBLY |
*2 |
EGR VALVE GASKET |
| *3 |
EGR COOLER GASKET |
*4 |
NO. 4 WATER BY-PASS HOSE |
| *5 |
NO. 3 WATER BY-PASS HOSE |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

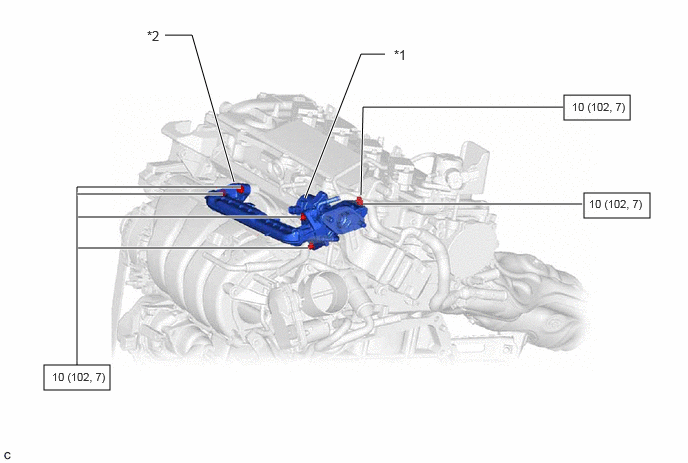

| *1 |
EGR VALVE ASSEMBLY |
*2 |
NO. 1 EGR PIPE SUB-ASSEMBLY |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
