Components [08/2020 - 08/2021]

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

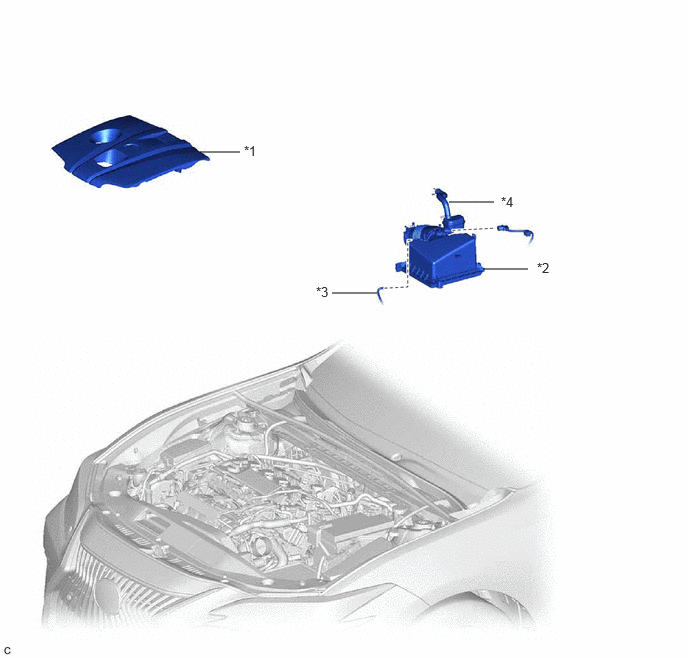

Fig 1: EGR Cooler Replacement Components With Torque Specifications [08/2020 - 08/2021] (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 ENGINE COVER SUB-ASSEMBLY	*2	AIR CLEANER CAP WITH AIR CLEANER HOSE
*3	VACUUM HOSE	*4	NO. 2 VENTILATION HOSE

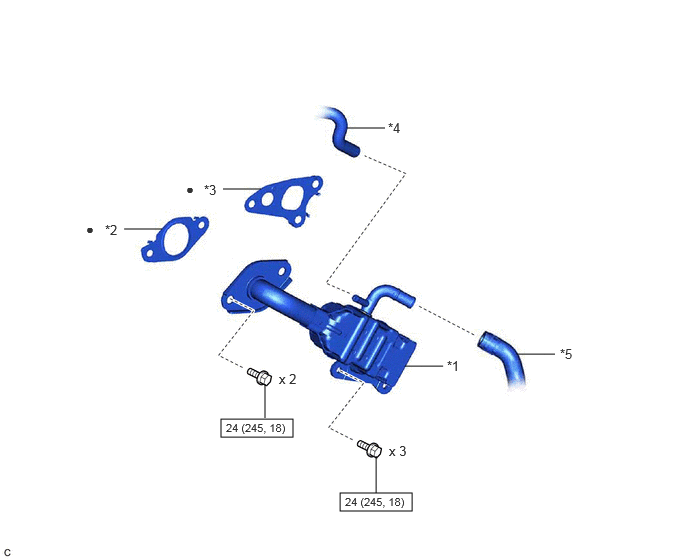

Fig 2: EGR Cooler Replacement Components With Torque Specifications [08/2020 - 08/2021] (2 Of 2)

*1	EGR COOLER ASSEMBLY	*2	EGR VALVE GASKET
*3	EGR COOLER GASKET	*4	NO. 4 WATER BY-PASS HOSE
*5	NO. 3 WATER BY-PASS HOSE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
