Removal [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR FLOOR SIDE MEMBER COVER
    1. Remove the bolt and 7 clips.
      GTY947315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 clamps (A) and 2 clamps (B) to remove the rear floor side member cover from the vehicle body.
  2. REMOVE CANISTER (CHARCOAL CANISTER ASSEMBLY)

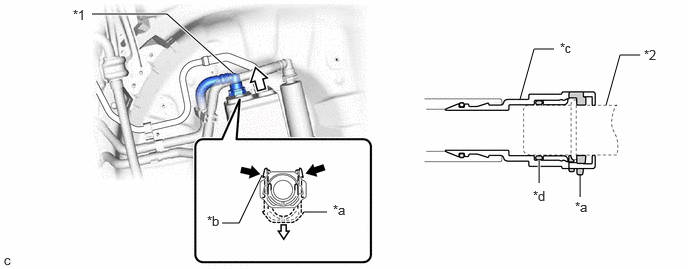

    1. Disconnect the fuel tank vent hose from the canister (charcoal canister assembly).
      GTY948131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Fuel Tank Vent Hose *2 Pipe (Canister (Charcoal Canister Assembly))
      *a Retainer *b Tab
      *c Tube Connector *d O-ring
      Pinch Pull
      NOTE:
      • Remove any dirt or foreign matter on the tube connector before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (canister (charcoal canister assembly)).
      • Perform this work by hand. Do not use any tools.
      • Do not forcibly bend, twist or turn the fuel tank vent hose.
      • Protect the disconnected parts by covering them with plastic bags after disconnecting the fuel tank vent hose.
      • If the tube connector and pipe (canister (charcoal canister assembly)) are stuck, push and pull to release them.

      HINT:

      Do not remove the retainer.

      1. Pinch the tabs of the retainer to disengage the lock claws and pull it down.
      2. Pull off the fuel tank vent hose.

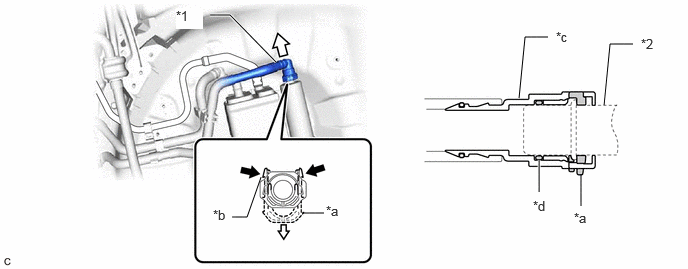

    2. Disconnect the vent line hose from the canister (charcoal canister assembly).
      GTY947507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Vent Line Hose *2 Pipe (Canister (Charcoal Canister Assembly))
      *a Retainer *b Tab
      *c Tube Connector *d O-ring
      Pinch Pull
      NOTE:
      • Remove any dirt or foreign matter on the tube connector before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (canister (charcoal canister assembly)).
      • Perform this work by hand. Do not use any tools.
      • Do not forcibly bend, twist or turn the vent line hose.
      • Protect the disconnected parts by covering them with plastic bags after disconnecting the vent line hose.
      • If the tube connector and pipe (canister (charcoal canister assembly)) are stuck, push and pull to release them.

      HINT:

      Do not remove the retainer.

      1. Pinch the tabs of the retainer to disengage the lock claws and pull it down.
      2. Pull off the vent line hose.

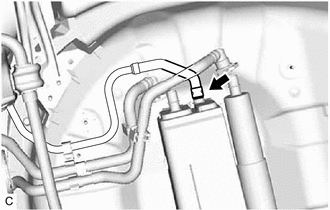

    3. Slide the clip and disconnect the purge line hose from the canister (charcoal canister assembly).
      GTY947810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

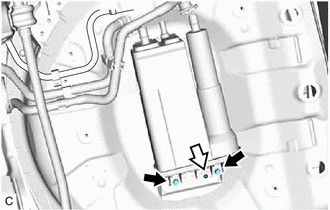

    4. Remove the 2 bolts.
      GTY947811Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Disengage the clip from the canister (charcoal canister assembly).

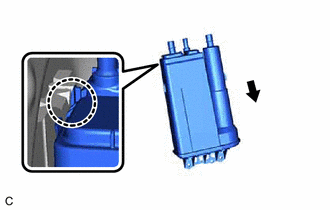

    6. Disengage the claw and remove the canister (charcoal canister assembly) from vehicle body as shown in the illustration.
      GTY947193Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

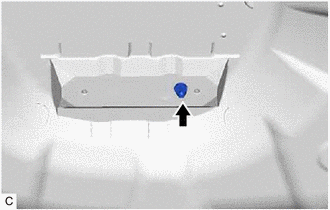

    7. Remove the clip from the vehicle body.
      GTY947809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY

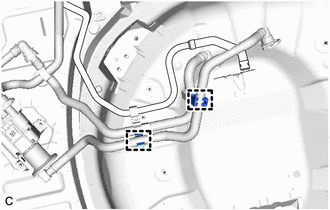

    1. Disengage the 2 clamps.
      GTY947378Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

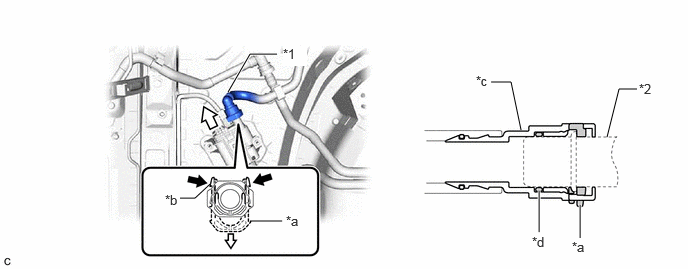

    2. Disconnect the air line tube from the leak detection pump sub-assembly.
      GTY947609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Air Line Tube *2 Pipe (Leak Detection Pump Sub-assembly)
      *a Retainer *b Tab
      *c Tube Connector *d O-ring
      Pinch Pull
      NOTE:
      • Remove any dirt or foreign matter on the tube connector before performing this work.
      • Do not allow any scratches or foreign matter to get on the parts when disconnecting them as the tube connector has an O-ring that seals the pipe (leak detection pump sub-assembly).
      • Perform this work by hand. Do not use any tools.
      • Do not forcibly bend, twist or turn the air line tube.
      • Protect the disconnected parts by covering them with plastic bags after disconnecting the air line tube.
      • If the tube connector and pipe (leak detection pump sub-assembly) are stuck, push and pull to release them.

      HINT:

      Do not remove the retainer.

      1. Pinch the tabs of the retainer to disengage the lock claws and pull it down.
      2. Pull off the air line tube.

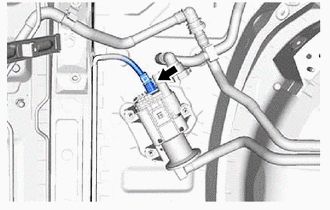

    3. Disconnect the leak detection pump sub-assembly connector.
      GTY947325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

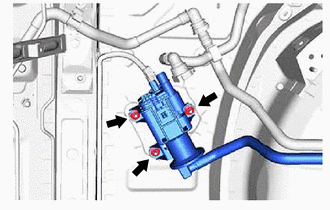

    4. Remove the 3 nuts and No. 2 charcoal canister sub-assembly from the vehicle body.
      GTY947601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE LEAK DETECTION PUMP SUB-ASSEMBLY

    HINT:

    Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

    1. Before removing the leak detection pump sub-assembly, clean the No. 2 charcoal canister sub-assembly by blowing air into it to ensure that the No. 2 charcoal canister sub-assembly is free of foreign matter.
      NOTE:
      • Make sure to clean the No. 2 charcoal canister sub-assembly using air only.
      • Do not use gasoline, thinners or solvents.
    2. While disengaging the 2 claws as shown in the illustration, push the leak detection pump sub-assembly upwards using a screwdriver with its tip wrapped with protective tape to remove it.
      GTY741065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Protective Tape
    3. Check if the No. 2 charcoal canister sub-assembly contains foreign matter such as mud or water.
      1. Visually check that the inside of the No. 2 charcoal canister sub-assembly is free of foreign matter.
        GTY565609Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Hold the No. 2 charcoal canister sub-assembly upside down to make sure that it is free of foreign matter.

        If the No. 2 charcoal canister sub-assembly contains foreign matter, replace it.
