Installation [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL LEAK DETECTION PUMP SUB-ASSEMBLY

    HINT:

    Only perform this procedure when replacement of the leak detection pump sub-assembly is necessary.

    1. Engage the 2 claws to install a new leak detection pump sub-assembly to the No. 2 charcoal canister sub-assembly.
      GTY755055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Do not allow foreign matter such as grease, oil or water to adhere to the O-ring.
      • Ensure that the claws are engaged properly.
  2. INSTALL NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY
    1. Install the No. 2 charcoal canister sub-assembly to the vehicle body with the 3 nuts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    2. Connect the leak detection pump sub-assembly connector.
    3. Push the air line tube onto the (leak detection pump sub-assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (leak detection pump sub-assembly) before performing this work.
      • After connecting the air line tube, check that the air line tube is securely connected by pulling on the tube connector.

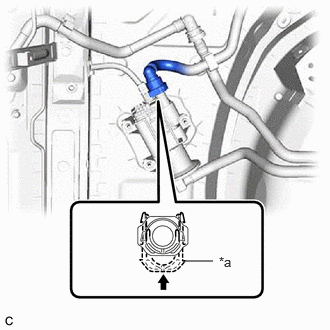

      GTY947855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push in
    4. Engage the 2 clamps.
  3. INSTALL CANISTER (CHARCOAL CANISTER ASSEMBLY)
    1. Install the clip to the vehicle body.
    2. Engage the claw to install the canister (charcoal canister assembly) to the vehicle body as shown in the illustration.
      GTY947398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the clip to the canister (charcoal canister assembly).
    4. Install the 2 bolts.

      Torque: 8.0 N.m (82 kgf/cm, 71 in.lbf)

    5. Connect the purge line hose to the canister (charcoal canister assembly) and slide the clip to secure it.
    6. Push the vent line hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
      • After connecting the vent line hose, check that the vent line hose is securely connected by pulling on the tube connector.

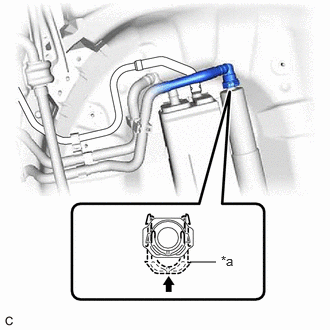

      GTY947875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push in
    7. Push the fuel tank vent hose onto the canister (charcoal canister assembly) and push in the retainer to engage the lock claws.
      NOTE:
      • Check that there are no scratches or foreign matter around the connecting parts of the tube connector and pipe (canister (charcoal canister assembly)) before performing this work.
      • After connecting the fuel tank vent hose, check that the fuel tank vent hose is securely connected by pulling on the tube connector.

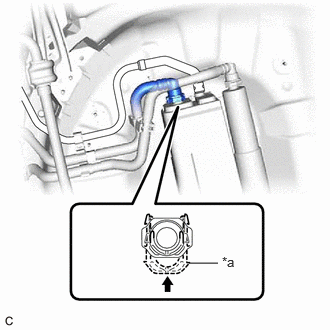

      GTY948227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer
      Push in
  4. INSTALL REAR FLOOR SIDE MEMBER COVER
    1. Engage the 3 clamps (A) and 2 clamps (B) to install the rear floor side member cover to the vehicle body.

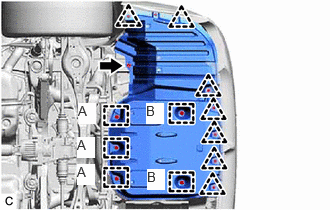

      GTY947315Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt and 7 clips.

      Bolt

      Torque: 7.5 N.m (76 kgf/cm, 66 in.lbf)
