Components [08/2020 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

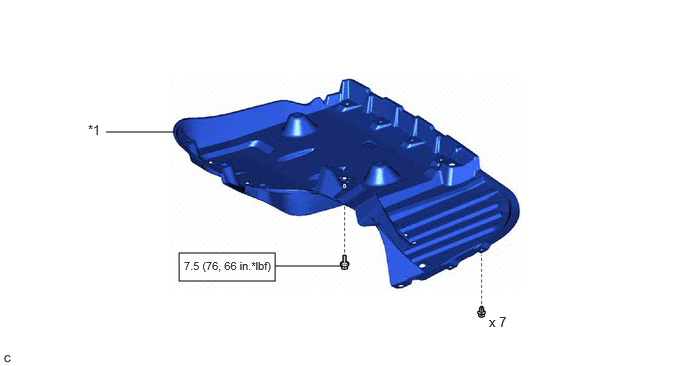

| *1 |
REAR FLOOR SIDE MEMBER COVER |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

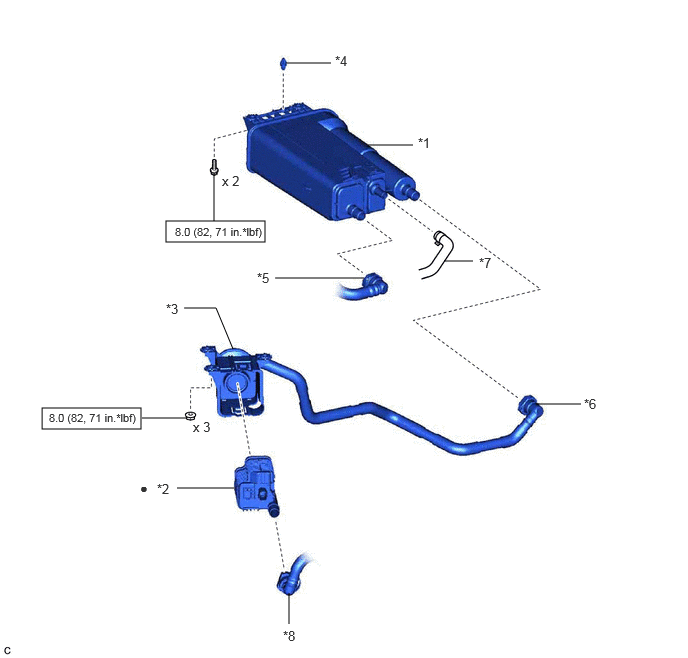

| *1 |
CANISTER (CHARCOAL CANISTER ASSEMBLY) |
*2 |
LEAK DETECTION PUMP SUB-ASSEMBLY |
| *3 |
NO. 2 CHARCOAL CANISTER SUB-ASSEMBLY |
*4 |
CLIP |
| *5 |
FUEL TANK VENT HOSE |
*6 |
VENT LINE HOSE |
| *7 |
PURGE LINE HOSE |
*8 |
AIR LINE TUBE |
|
N.m (kgf/cm, ft.lbf): Specified torque |
• |
Non-reusable part |
