Active Control Engine Mount System [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST USING TECHSTREAM (ACTIVATE THE ACM INHIBIT)
    1. Connect the Techstream to the DLC3.
    2. Turn the engine switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Powertrain / Engine / Active Test / Activate the ACM Inhibit.

      Powertrain > Engine > Active Test

      Tester Display
      Activate the ACM Inhibit
    5. According to the display on the Techstream, perform the Active Test to operate the vacuum switching valve (for active control engine mount system) and for check the operating sound of the vacuum switching valve (for active control engine mount system).

      OK

      Operating sounds can be heard.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  5

    Result:

    OK

    See step  2

  2. CHECK VACUUM HOSES
    GTY948669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *1 Engine
    *2 Vacuum Pump Assembly
    *3 Front Engine Mounting Insulator
    *4 Rear Engine Mounting Insulator
    *5 ECM
    *6 Vacuum Switching Valve (for Active Control Engine Mount System)
    1. Check the air and vacuum hoses for looseness, disconnection and blockage.

      OK

      No looseness, disconnection or blockage.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE VACUUM HOSES

    Result:

    OK

    See step  3

  3. CHECK VACUUM

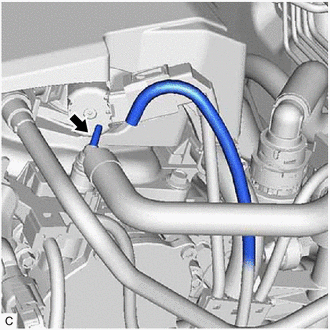

    GTY772839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Disconnect the vacuum hose from the vacuum pump assembly.
    2. Start the engine.
    3. Check that the disconnected port located on the vacuum pump assembly applies suction to your finger.

      OK

      Vacuum exists.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE VACUUM PUMP ASSEMBLY. Refer to  REMOVAL [08/2020 - ]

    Result:

    OK

    See step  4

  4. INSPECT FRONT ENGINE MOUNTING INSULATOR
    1. Inspect the front engine mounting insulator.

      Refer to ON-VEHICLE INSPECTION [08/2020 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    SYSTEM NORMAL

    Result:

    NG

    REPLACE FRONT ENGINE MOUNTING INSULATOR. Refer to  REMOVAL [08/2020 - ]

  5. CHECK TERMINAL VOLTAGE (POWER SOURCE OF VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT SYSTEM))
    GTY960489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Vacuum Switching Valve (for Active Control Engine Mount System))
    1. Disconnect the vacuum switching valve (for active control engine mount system) connector.
    2. Turn the engine switch on (IG).
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      C49-1 (+B) - Body ground Engine switch on (IG) 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    GO TO ECM POWER SOURCE CIRCUIT. Refer to  ECM Power Source Circuit [08/2020 - ]

    Result:

    OK

    See step  6

  6. INSPECT VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT SYSTEM)
    1. Inspect the vacuum switching valve (for active control engine mount system).

      Refer to INSPECTION [08/2020 - ]

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT SYSTEM). Refer to  REMOVAL [08/2020 - ]

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (VACUUM SWITCHING VALVE (FOR ACTIVE CONTROL ENGINE MOUNT SYSTEM) - ECM)
    1. Disconnect the vacuum switching valve (for active control engine mount system) connector.
    2. Disconnect the ECM connector.
    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      C49-2 (ACM) - C77-44 (ACM) Always Below 1 Ω
      C49-2 (ACM) or C77-44 (ACM) - Body ground and other terminals Always 10 kΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ECM. Refer to  REMOVAL [08/2020 - 08/2021]  , or refer to  REMOVAL [08/2021 - 09/2022]  , or refer to  REMOVAL [09/2022 - ]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
