DTC B242E: Open in IG Circuit [06/2018 - 07/2019]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. CONFIRM MODEL
    1. Choose the model to be inspected.

      Result

      Result Proceed to
      For LED Type Turn Signal Light A
      For Bulb Type Turn Signal Light B

    Result:

    B

    See step  4

    Result:

    A

    See step  2

  2. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / AFS or AFS (Sub) / Trouble Codes.
    5. Clear the DTCs.

      Body Electrical > AFS > Clear DTCs

      Body Electrical > AFS (Sub) > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  3

  3. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Wait 10 seconds or more.
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / AFS or AFS (Sub) / Trouble Codes.
    6. Check for DTCs.

      Body Electrical > AFS > Trouble Codes

      Body Electrical > AFS (Sub) > Trouble Codes

      OK

      DTC B242E is not output.

      Result

      Result Proceed to
      OK A
      NG (DTC output from headlight ECU sub-assembly LH) B
      NG (DTC output from headlight ECU sub-assembly RH) C

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

    Result:

    B

    See step  6

    Result:

    C

    See step  8

  4. CLEAR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / HL AutoLeveling or HL AutoLeveling (Sub) / Trouble Codes.
    5. Clear the DTCs.

      Body Electrical > HL AutoLeveling > Clear DTCs

      Body Electrical > HL AutoLeveling (Sub) > Clear DTCs

      Result

      Proceed to
      NEXT

    Result:

    NEXT

    See step  5

  5. CHECK FOR DTC
    1. Connect the Techstream to the DLC3.
    2. Turn the power switch on (IG).
    3. Wait 10 seconds or more.
    4. Turn the Techstream on.
    5. Enter the following menus: Body Electrical / HL AutoLeveling or HL AutoLeveling (Sub) / Trouble Codes.
    6. Check for DTCs.

      Body Electrical > HL AutoLeveling > Trouble Codes

      Body Electrical > HL AutoLeveling (Sub) > Trouble Codes

      OK

      DTC B242E is not output.

      Result

      Result Proceed to
      OK A
      NG (DTC output from headlight ECU sub-assembly LH) B
      NG (DTC output from headlight ECU sub-assembly RH) C

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [06/2018 - ]

    Result:

    C

    See step  8

    Result:

    B

    See step  6

  6. INSPECT HEADLIGHT ECU SUB-ASSEMBLY LH (IG TERMINAL VOLTAGE)
    GTY821692Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Headlight ECU Sub-assembly LH)
    1. Disconnect the A11 headlight ECU sub-assembly LH connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A11-4 (IG) - Body ground Power switch on (IG) 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  7

  7. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY LH - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A11-12 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY LH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  8. INSPECT HEADLIGHT ECU SUB-ASSEMBLY RH (IG TERMINAL VOLTAGE)

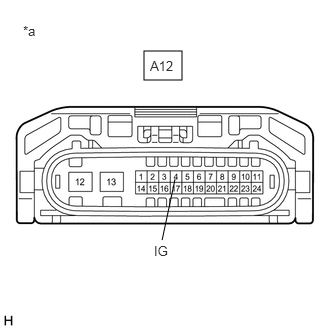

    GTY821691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    *a Front view of wire harness connector
    (to Headlight ECU Sub-assembly RH)
    1. Disconnect the A12 headlight ECU sub-assembly RH connector.
    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Condition Specified Condition
      A12-4 (IG) - Body ground Power switch on (IG) 11 to 14 V

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  9

  9. CHECK HARNESS AND CONNECTOR (HEADLIGHT ECU SUB-ASSEMBLY RH - BODY GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A12-12 (GND) - Body ground Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE HEADLIGHT ECU SUB-ASSEMBLY RH. Refer to  REMOVAL [06/2018 - 09/2022]

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
