DTC B2424: Headlight Beam Level Control Motor LH Lost Communication; DTC B2425: Headlight Beam Level Control Motor RH Lost Communication [07/2019 - 10/2019]: Wiring Diagram

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

For TMMK Made Before Sep. 2019 Production

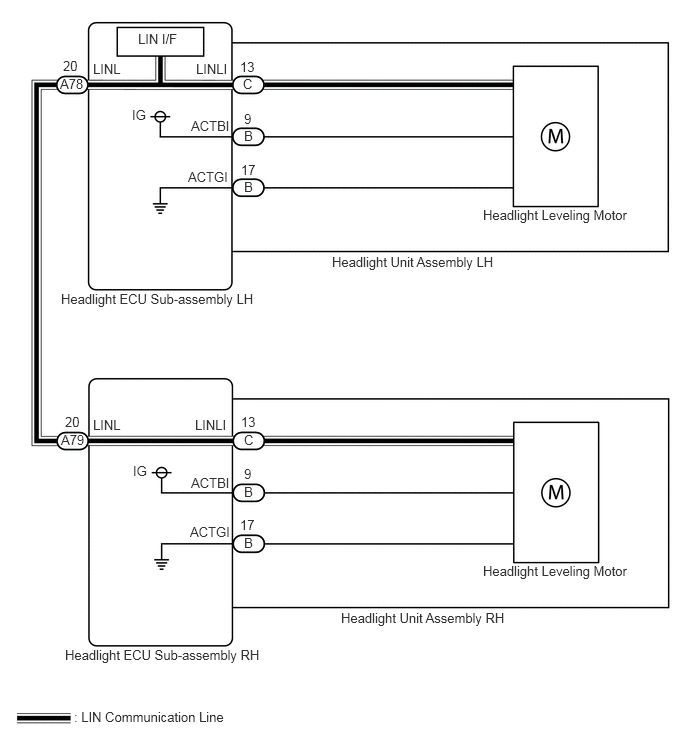

Fig 1: For TMMK Made Before Sep. 2019 Production [07/2019 - 10/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
For TMC Made or TMMK Made From Sep. 2019 Production

Fig 2: For TMC Made or TMMK Made From Sep. 2019 Production [07/2019 - 10/2019]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
