Components [08/2021 - ]

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

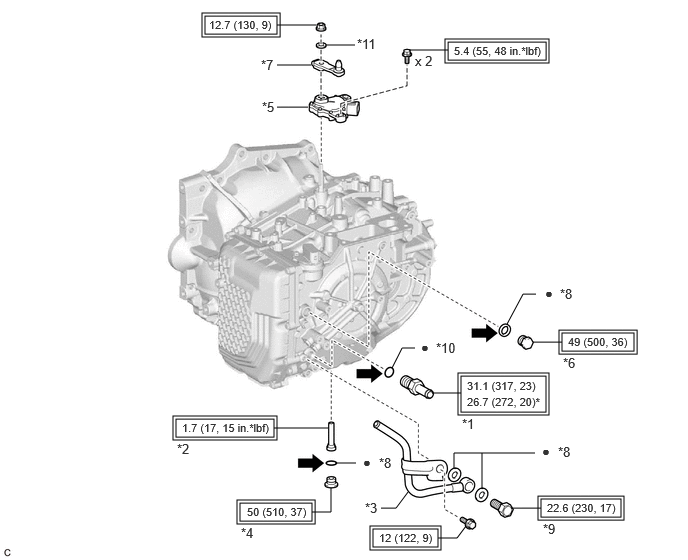

Fig 1: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2021 - ] (1 Of 13)
GTY955073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 OIL COOLER OUTLET TUBE SUB-ASSEMBLY *2 NO. 1 TRANSMISSION OIL FILLER TUBE
*3 OIL COOLER UNION SUB-ASSEMBLY *4 OVERFLOW PLUG
*5 PARK/NEUTRAL POSITION SWITCH ASSEMBLY *6 REFILL PLUG
*7 TRANSMISSION CONTROL SHAFT LEVER *8 GASKET
*9 OIL COOLER UNION BOLT *10 O-RING
*11 WASHER - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) * For use with a union nut wrench
• Non-reusable part Toyota Genuine ATF WS

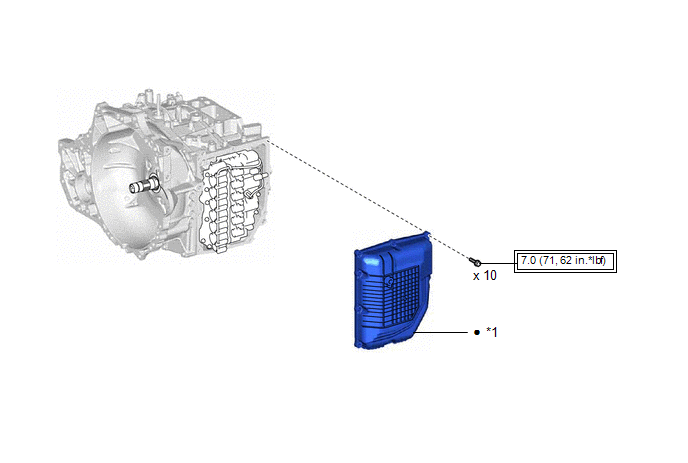

Fig 2: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2021 - ] (2 Of 13)
GTY1087287Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION CASE SIDE COVER - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part

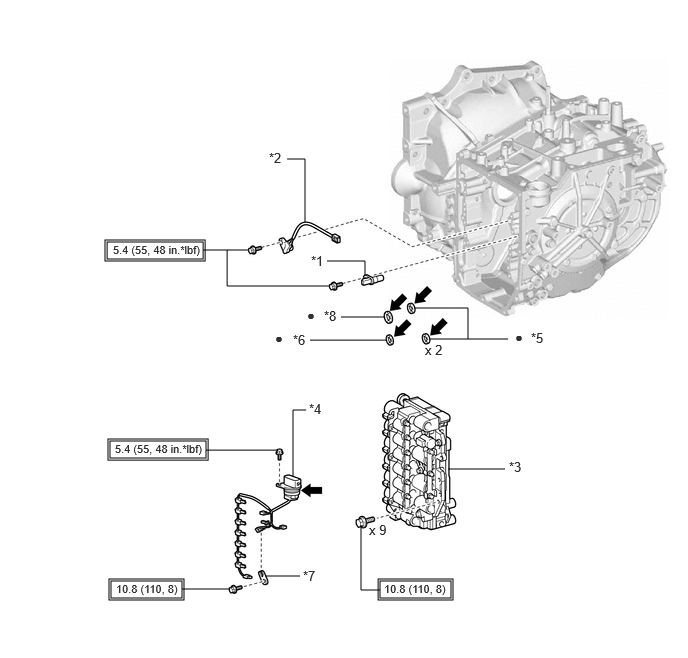

Fig 3: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2021 - ] (3 Of 13)
GTY957816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION REVOLUTION SENSOR (NT) *2 TRANSMISSION REVOLUTION SENSOR (NC)
*3 TRANSMISSION VALVE BODY ASSEMBLY *4 TRANSMISSION WIRE
*5 TRANSAXLE CASE GASKET *6 NO. 1 FRONT OIL PUMP COVER GASKET
*7 TEMPERATURE SENSOR CLAMP *8 NO. 2 FRONT OIL PUMP COVER GASKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS - -

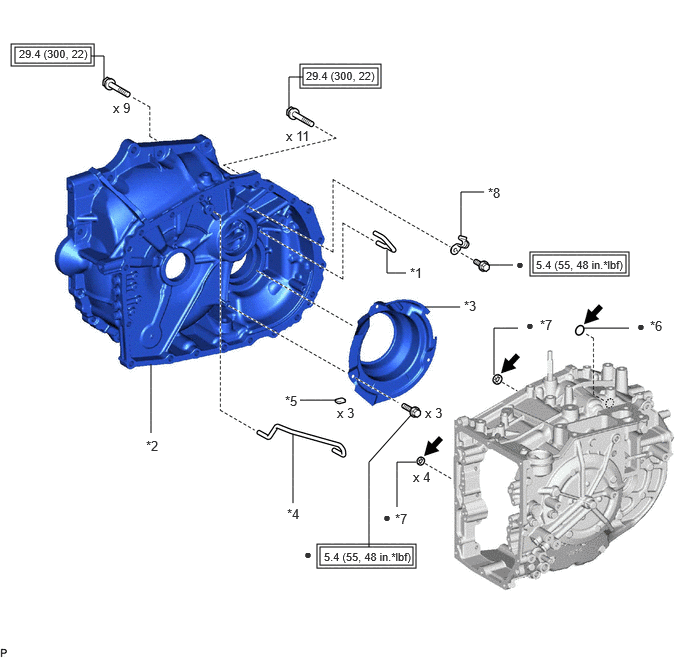

Fig 4: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2021 - ] (4 Of 13)
GTY956063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 DIFFERENTIAL GEAR LUBE APPLY TUBE *2 TRANSAXLE HOUSING
*3 TRANSAXLE HOUSING OIL SEPARATOR *4 TRANSMISSION LUBE APPLY TUBE
*5 TRANSMISSION OIL CLEANER MAGNET *6 O-RING
*7 TRANSAXLE CASE GASKET *8 CLAMP
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS - -

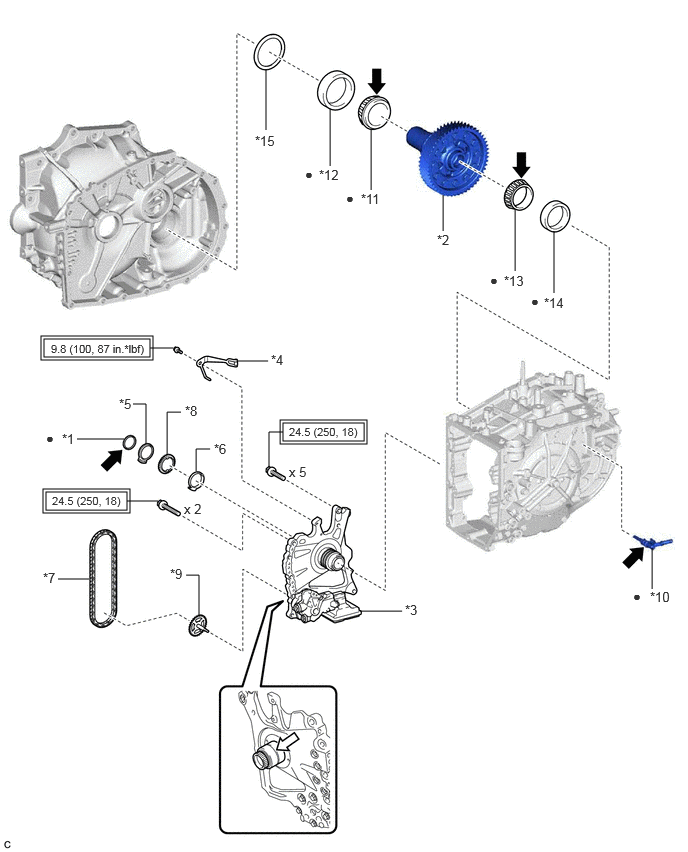

Fig 5: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2021 - ] (5 Of 13)
GTY958403Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 CLUTCH DRUM OIL SEAL RING *2 DIFFERENTIAL CASE ASSEMBLY
*3 FRONT OIL PUMP ASSEMBLY *4 MANUAL DETENT SPRING SUB-ASSEMBLY
*5 OIL PUMP SPROCKET FRONT THRUST WASHER *6 OIL PUMP SPROCKET REAR THRUST WASHER
*7 TRANSMISSION DRIVE CHAIN *8 TRANSMISSION OIL PUMP DRIVE SPROCKET
*9 OIL PUMP DRIVE SHAFT SUB-ASSEMBLY *10 NO. 1 BREATHER PLUG (ATM)
*11 FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (INNER RACE) *12 FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING (OUTER RACE)
*13 FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (INNER RACE) *14 FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING (OUTER RACE)
*15 DIFFERENTIAL DRIVE PINION SHIM - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS MP grease

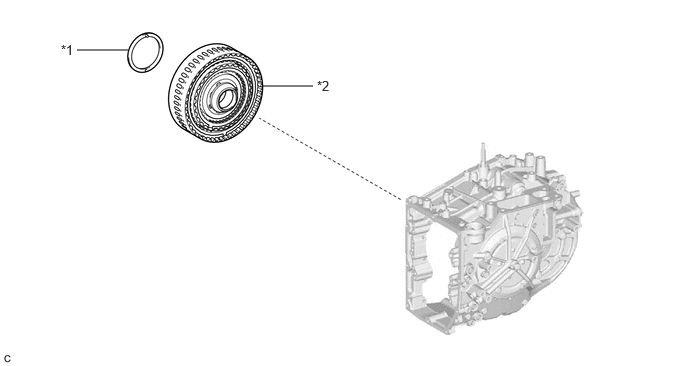

Fig 6: Automatic Transaxle Unit Replacement Components [08/2021 - ] (6 Of 13)
GTY769564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 PLANETARY CARRIER THRUST WASHER *2 C-3 AND C-4 CLUTCH ASSEMBLY

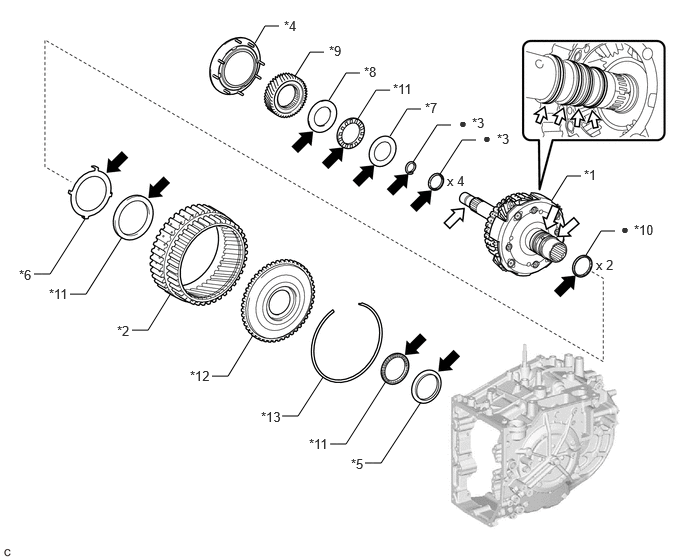

Fig 7: Automatic Transaxle Unit Replacement Components [08/2021 - ] (7 Of 13)
GTY743863Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT PLANETARY GEAR ASSEMBLY *2 FRONT PLANETARY RING GEAR
*3 INPUT SHAFT OIL SEAL RING *4 NO. 2 PLANETARY CARRIER THRUST WASHER
*5 NO. 6 THRUST BEARING RACE *6 NO. 7 THRUST BEARING RACE
*7 NO. 8 THRUST BEARING RACE *8 NO. 9 THRUST BEARING RACE
*9 PLANETARY SUN GEAR *10 REAR INPUT SHAFT OIL SEAL RING
*11 THRUST NEEDLE ROLLER BEARING *12 FRONT PLANETARY RING GEAR FLANGE
*13 SNAP RING - -
• Non-reusable part Toyota Genuine ATF WS
MP grease - -

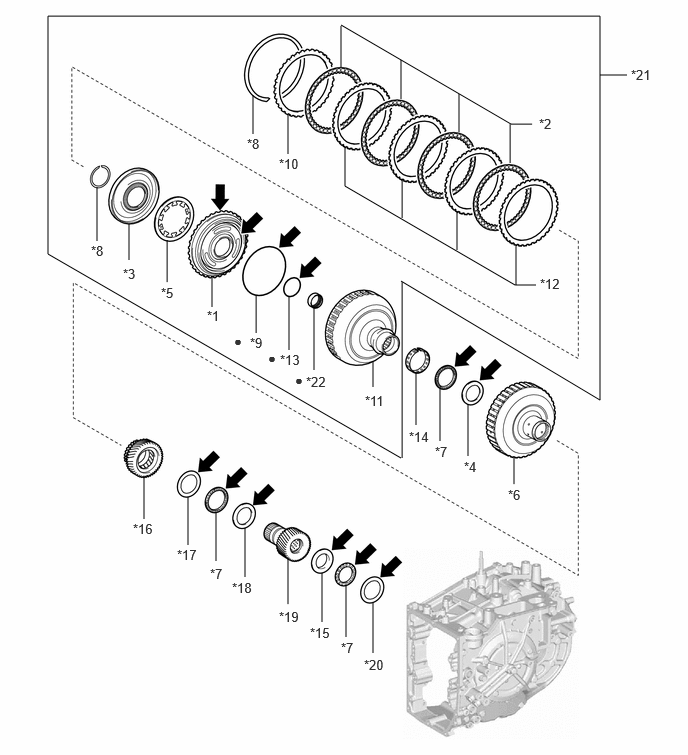

Fig 8: Automatic Transaxle Unit Replacement Components [08/2021 - ] (8 Of 13)
GTY1206273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FORWARD CLUTCH PISTON *2 FRONT CLUTCH CLUTCH DISC
*3 NO. 1 CLUTCH BALANCER *4 NO. 5 THRUST BEARING RACE
*5 REAR CLUTCH PISTON RETURN COMPRESSION SPRING *6 SUN GEAR INPUT HUB SUB-ASSEMBLY
*7 THRUST NEEDLE ROLLER BEARING *8 SNAP RING
*9 O-RING *10 FORWARD CLUTCH FLANGE
*11 CLUTCH DRUM SUB-ASSEMBLY *12 FORWARD MULTIPLE DISC CLUTCH CLUTCH PLATE
*13 D-RING *14 TOLERANCE RING
*15 NO. 3 THRUST BEARING RACE *16 PLANETARY SUN GEAR SUB-ASSEMBLY
*17 NO. 4 THRUST BEARING RACE *18 THRUST BEARING RACE
*19 REAR PLANETARY SUN GEAR SUB-ASSEMBLY *20 NO. 2 THRUST BEARING RACE
*21 C-1 CLUTCH ASSEMBLY *22 NEEDLE ROLLER BEARING
• Non-reusable part Toyota Genuine ATF WS

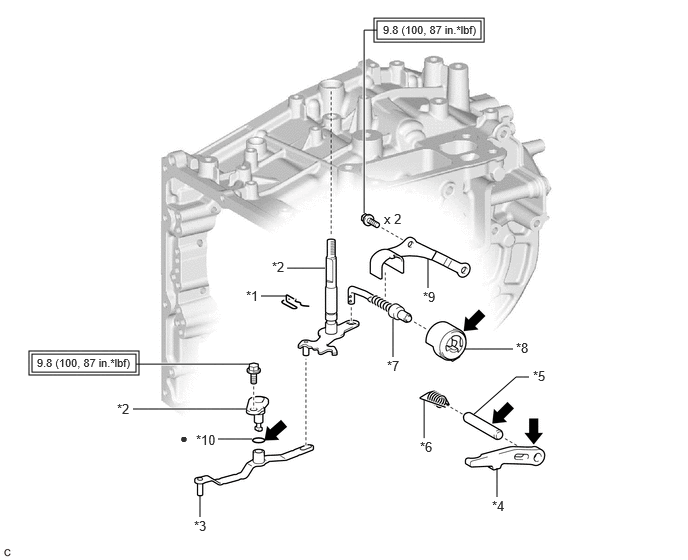

Fig 9: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2021 - ] (9 Of 13)
GTY747098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 MANUAL VALVE LEVER SHAFT RETAINER SPRING *2 MANUAL VALVE LEVER SHAFT SUB-ASSEMBLY
*3 MANUAL VALVE LEVER SUB-ASSEMBLY *4 PARKING LOCK PAWL
*5 PARKING LOCK PAWL SHAFT *6 PARKING LOCK PAWL TORSION SPRING
*7 PARKING LOCK ROD SUB-ASSEMBLY *8 PARKING LOCK SLEEVE
*9 PAWL STOPPER PLATE *10 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS - -

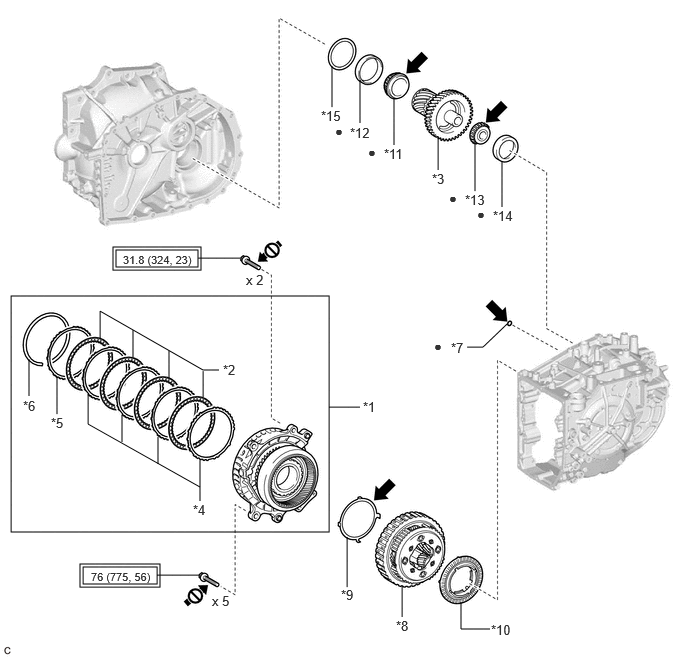

Fig 10: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2021 - ] (10 Of 13)
GTY752126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 COUNTER DRIVE GEAR SUB-ASSEMBLY *2 NO. 1 BRAKE DISC
*3 PINION AND COUNTER DRIVEN GEAR SUB-ASSEMBLY *4 NO. 1 BRAKE PLATE
*5 NO. 1 BRAKE FLANGE *6 SNAP RING
*7 O-RING *8 REAR PLANETARY GEAR ASSEMBLY
*9 NO. 3 PLANETARY CARRIER THRUST WASHER *10 NO. 4 PLANETARY CARRIER THRUST WASHER
*11 COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (INNER RACE) *12 COUNTER DRIVEN GEAR FRONT TAPERED ROLLER BEARING (OUTER RACE)
*13 COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (INNER RACE) *14 COUNTER DRIVEN GEAR REAR TAPERED ROLLER BEARING (OUTER RACE)
*15 PINION AND COUNTER DRIVEN GEAR SHIM - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS Do not apply lubricants to the threaded parts

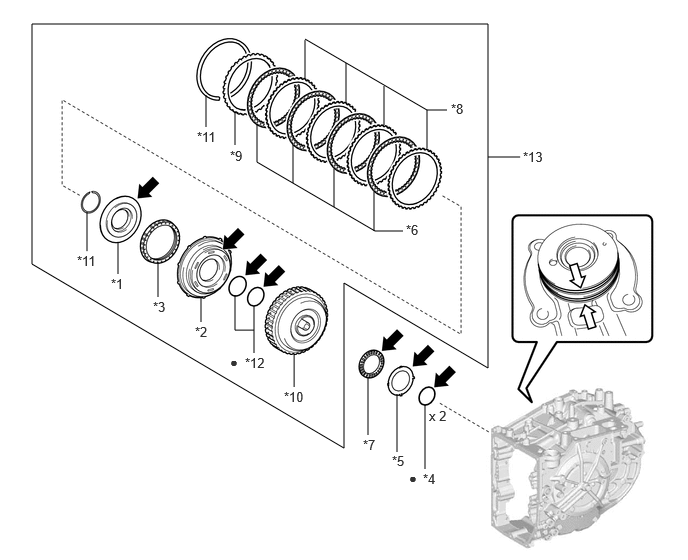

Fig 11: Automatic Transaxle Unit Replacement Components [08/2021 - ] (11 Of 13)
GTY752419Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 C-2 CLUTCH BALANCER *2 C-2 CLUTCH PISTON
*3 CLUTCH RETURN SPRING SUB-ASSEMBLY *4 DIRECT CLUTCH DRUM OIL SEAL RING
*5 NO. 1 THRUST BEARING RACE *6 NO. 2 CLUTCH DISC
*7 THRUST NEEDLE ROLLER BEARING *8 NO. 2 CLUTCH PLATE
*9 DIRECT CLUTCH FLANGE *10 INTERMEDIATE SHAFT SUB-ASSEMBLY
*11 SNAP RING *12 O-RING
*13 C-2 CLUTCH ASSEMBLY - -
• Non-reusable part Toyota Genuine ATF WS
MP grease - -

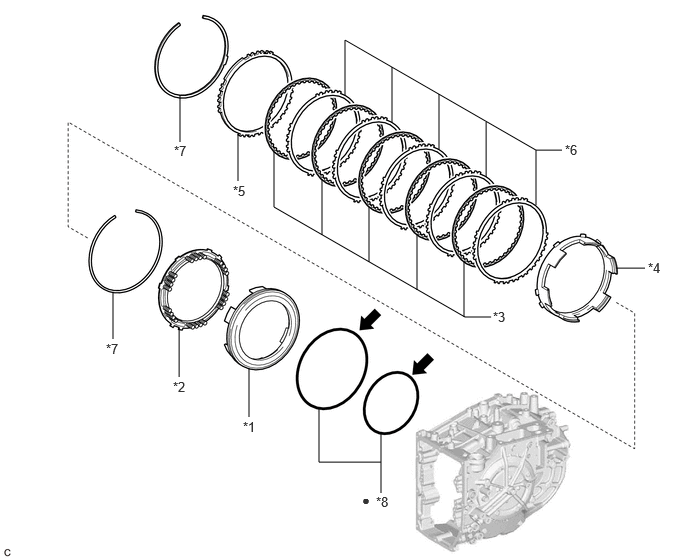

Fig 12: Automatic Transaxle Unit Replacement Components [08/2021 - ] (12 Of 13)
GTY750843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 1ST AND REVERSE BRAKE PISTON *2 1ST AND REVERSE BRAKE RETURN SPRING SUB-ASSEMBLY
*3 2ND BRAKE BRAKE DISC *4 NO. 2 1ST AND REVERSE BRAKE PISTON
*5 2ND BRAKE BRAKE FLANGE *6 2ND BRAKE BRAKE PLATE
*7 SNAP RING *8 O-RING
• Non-reusable part Toyota Genuine ATF WS

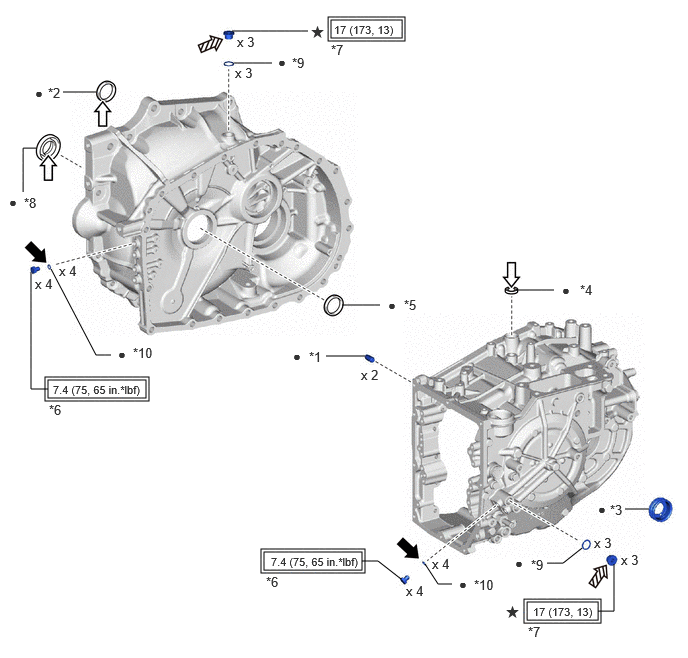

Fig 13: Automatic Transaxle Unit Replacement Components With Torque Specifications [08/2021 - ] (13 Of 13)
GTY958326Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 AUTOMATIC TRANSMISSION CASE STRAIGHT PIN *2 DIFFERENTIAL SIDE OIL SEAL
*3 FRONT DRIVE SHAFT OIL SEAL LH *4 MANUAL VALVE LEVER SHAFT OIL SEAL
*5 NEEDLE ROLLER BEARING *6 NO. 1 TRANSAXLE CASE PLUG
*7 NO. 2 TRANSAXLE CASE PLUG *8 TRANSAXLE CASE OIL SEAL
*9 GASKET *10 O-RING
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS MP grease
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent * Precoated part
