Components [08/2021 - ]

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Transmission Wire Replacement Components With Torque Specifications [08/2021 - ] (1 Of 6)
GTY957625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 NO. 1 ENGINE UNDER COVER *2 NO. 2 ENGINE UNDER COVER ASSEMBLY
*3 FRONT WHEEL OPENING EXTENSION PAD LH *4 FRONT WHEEL OPENING EXTENSION PAD RH
*5 FRONT FENDER APRON SEAL LH - -
N*m (kgf*cm, ft.*lbf): Specified torque - -
Fig 2: Transmission Wire Replacement Components With Torque Specifications [08/2021 - ] (2 Of 6)
GTY794068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/ Performance Damper - -
*1 SUSPENSION TOWER DAMPER - -
N*m (kgf*cm, ft.*lbf): Specified torque - -

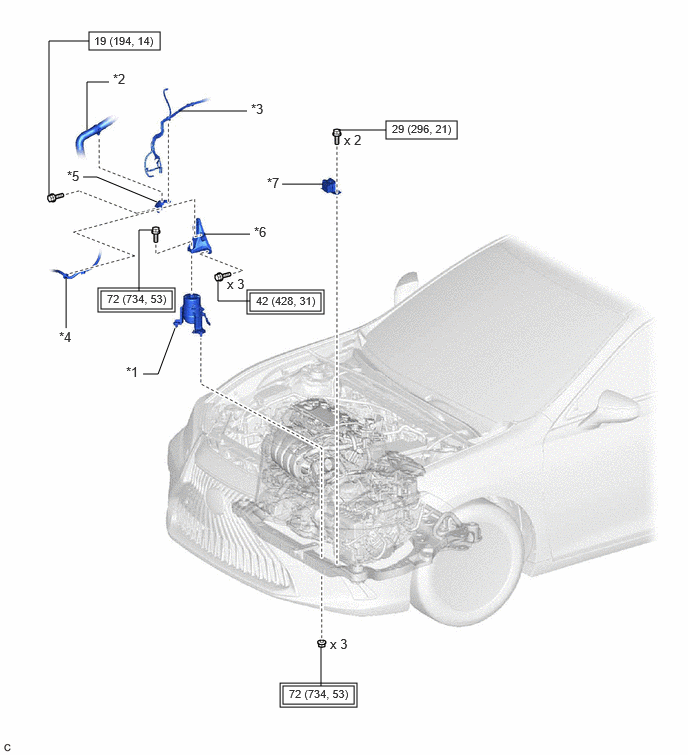

Fig 3: Transmission Wire Replacement Components With Torque Specifications [08/2021 - ] (3 Of 6)
GTY955528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT ENGINE MOUNTING INSULATOR *2 RADIATOR HOSE
*3 VACUUM HOSE *4 NO. 2 ENGINE WIRE
*5 NO. 1 RADIATOR BRACKET *6 FRONT ENGINE MOUNTING BRACKET
*7 FRONT SUSPENSION MEMBER DYNAMIC DAMPER - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Fig 4: Transmission Wire Replacement Components With Torque Specifications [08/2021 - ] (4 Of 6)
GTY958307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REFILL PLUG *2 NO. 1 TRANSMISSION OIL FILLER TUBE
*3 OVERFLOW PLUG *4 GASKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS - -

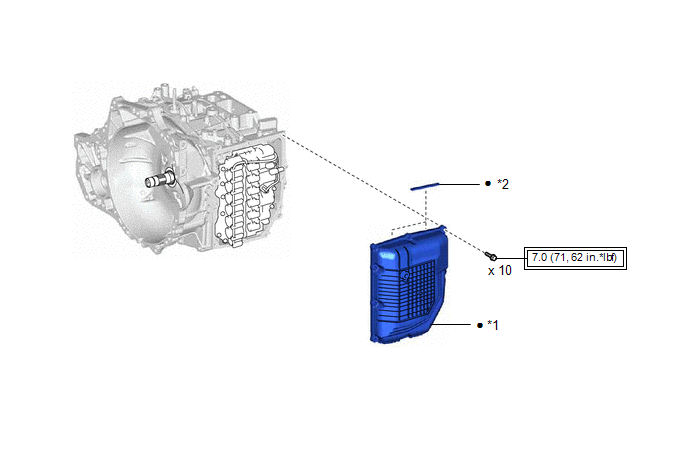

Fig 5: Transmission Wire Replacement Components With Torque Specifications [08/2021 - ] (5 Of 6)
GTY1087024Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSMISSION CASE SIDE COVER *2 TRANSMISSION VIBRATION CONTROL RUBBER
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Fig 6: Transmission Wire Replacement Components With Torque Specifications [08/2021 - ] (6 Of 6)
GTY955229Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 OIL COOLER UNION SUB-ASSEMBLY *2 TRANSMISSION WIRE
*3 OIL COOLER UNION BOLT *4 GASKET
*5 TEMPERATURE SENSOR CLAMP - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) • Non-reusable part
Toyota Genuine ATF WS - -
