Components [08/2020 - 08/2021]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Transmission Wire Replacement Components With Torque Specifications [08/2020 - 08/2021] (1 Of 6)
| *1 | NO. 1 ENGINE UNDER COVER | *2 | NO. 2 ENGINE UNDER COVER ASSEMBLY |
| *3 | FRONT WHEEL OPENING EXTENSION PAD LH | *4 | FRONT WHEEL OPENING EXTENSION PAD RH |
| *5 | FRONT FENDER APRON SEAL LH | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 2: Active Control Engine Mount (Front Side) Replacement Components With Torque Specifications [08/2020 - 08/2021] (2 Of 6)
| *A | w/ Performance Damper | - | - |
| *1 | SUSPENSION TOWER DAMPER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
Fig 3: Transmission Wire Replacement Components With Torque Specifications [08/2020 - 08/2021] (3 Of 6)
| *1 | FRONT ENGINE MOUNTING INSULATOR | *2 | RADIATOR HOSE |
| *3 | VACUUM HOSE | *4 | NO. 2 ENGINE WIRE |
| *5 | NO. 1 RADIATOR BRACKET | *6 | FRONT ENGINE MOUNTING BRACKET |
| *7 | FRONT SUSPENSION MEMBER DYNAMIC DAMPER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |
Fig 4: Transmission Wire Replacement Components With Torque Specifications [08/2020 - 08/2021] (4 Of 6)
| *1 | REFILL PLUG | *2 | NO. 1 TRANSMISSION OIL FILLER TUBE |
| *3 | OVERFLOW PLUG | *4 | GASKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |

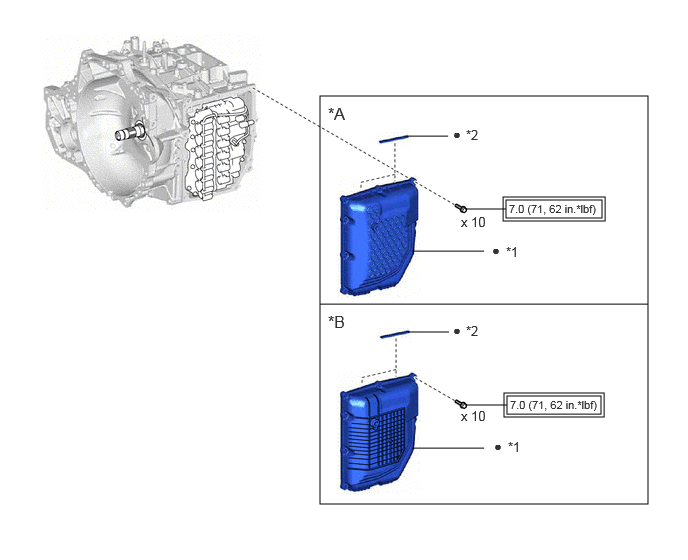

Fig 5: Transmission Wire Replacement Components With Torque Specifications [08/2020 - 08/2021] (5 Of 6)
| *A | for AISIN AW Made | *B | for AWNC Made |
| *1 | TRANSMISSION CASE SIDE COVER | *2 | TRANSMISSION VIBRATION CONTROL RUBBER |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part |
Fig 6: Transmission Wire Replacement Components With Torque Specifications [08/2020 - 08/2021] (6 Of 6)
| *1 | OIL COOLER UNION SUB-ASSEMBLY | *2 | TRANSMISSION WIRE |
| *3 | OIL COOLER UNION BOLT | *4 | GASKET |
| *5 | TEMPERATURE SENSOR CLAMP | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| Toyota Genuine ATF WS | - | - |
