Installation [08/2020 - ]: Procedure

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL TRANSMISSION OIL COOLER
    1. Temporarily install the transmission oil cooler to the automatic transaxle case sub-assembly with the bolt (A).
      GTY880370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the bolt (B).

      Torque: 13.5 N*m (138 kgf*cm, 10 ft.*lbf)

    3. Install the bolt (C).

      Torque: 13.5 N*m (138 kgf*cm, 10 ft.*lbf)

    4. Fully tighten the bolt (A) to install the transmission oil cooler.

      Torque: 13.5 N*m (138 kgf*cm, 10 ft.*lbf)

  2. CONNECT WATER BY-PASS HOSE ASSEMBLY
    1. Connect the water by-pass hose assembly to the transmission oil cooler and slide the clip to secure it.

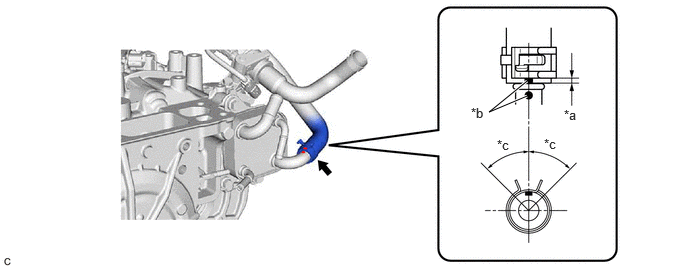

      GTY924946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 to 7 mm (0.0787 to 0.276 in.) *b Paint Mark
      *c 45° (Claw of Clip Location) - -
      NOTE:
      • Make sure to slide the water by-pass hose assembly until it contacts the hose stopper of the transmission oil cooler.
      • Make sure to align the paint mark of the water by-pass hose assembly with the paint mark of the transmission oil cooler.
      • Make sure that the claws of the clip are within the location shown in the illustration.
  3. CONNECT NO. 1 WATER BY-PASS HOSE
    1. Connect the No. 1 water by-pass hose to the transmission oil cooler and slide the clip to secure it.

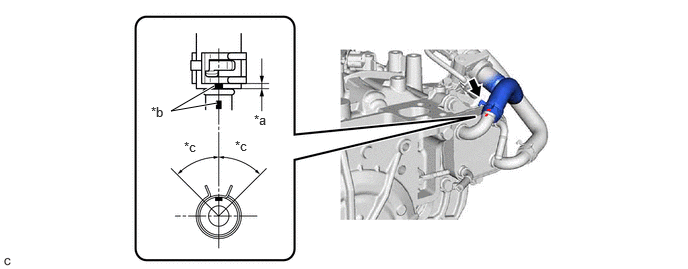

      GTY844228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 2 to 7 mm (0.0787 to 0.276 in.) *b Paint Mark
      *c 45° (Claw of Clip Location) - -
      NOTE:
      • Make sure to slide the No. 1 water by-pass hose until it contacts the hose stopper of the transmission oil cooler.
      • Make sure to align the paint mark of the No. 1 water by-pass hose with the paint mark of the transmission oil cooler.
      • Make sure that the claws of the clip are within the location shown in the illustration.
    2. Engage the 3 clamps to install the transmission breather clamp.
  4. INSTALL NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE
    1. Install the inlet No. 1 oil cooler hose, inlet No. 2 oil cooler hose, outlet No. 1 oil cooler hose and outlet No. 2 oil cooler hose to the No. 1 oil cooler tube sub-assembly without hose and slide the 4 clips to secure them.

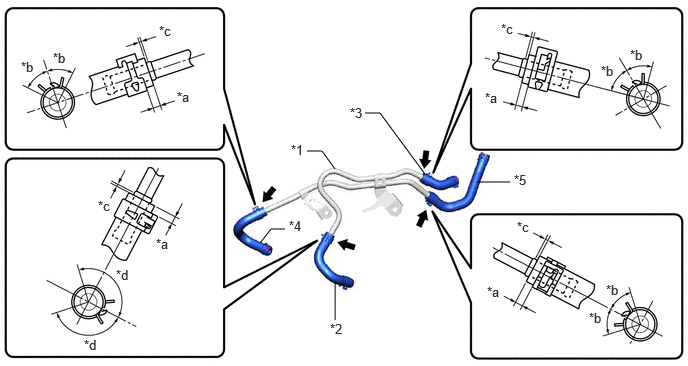

      GTY931877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 1 Oil Cooler Tube Sub-assembly without Hose *2 Inlet No. 1 Oil Cooler Hose
      *3 Inlet No. 2 Oil Cooler Hose *4 Outlet No. 1 Oil Cooler Hose
      *5 Outlet No. 2 Oil Cooler Hose - -
      *a 2 to 7 mm (0.0787 to 0.276 in.) *b 45° (Claw of Clip Location)
      *c 0 to 3 mm (0 to 0.118 in.) *d 135° (Claw of Clip Location)
      NOTE:
      • Make sure to slide the inlet No. 1 oil cooler hose, inlet No. 2 oil cooler hose, outlet No. 1 oil cooler hose and outlet No. 2 oil cooler hose until each contacts the hose stopper of the No. 1 oil cooler tube sub-assembly without hose.
      • Make sure that the claws of each clip are within the location shown in the illustration.
    2. Connect the outlet No. 2 oil cooler hose to the transmission oil cooler and slide the clip to secure it.
      GTY759371Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 3 mm (0 to 0.118 in.)
      *b 2 to 7 mm (0.0787 to 0.276 in.)
      *c Paint Mark
      *d 45° (Claw of Clip Location)
      NOTE:
      • Make sure to slide the outlet No. 2 oil cooler hose until it contacts the hose stopper of the transmission oil cooler.
      • Make sure to align the paint mark of the outlet No. 2 oil cooler hose with paint mark of the transmission oil cooler.
      • Make sure that the claws of the clip are within the location shown in the illustration.
    3. Connect the inlet No. 2 oil cooler hose to the transmission oil cooler and slide the clip to secure it.
      GTY761422Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 3 mm (0 to 0.118 in.)
      *b 2 to 7 mm (0.0787 to 0.276 in.)
      *c Paint Mark
      *d 45° (Claw of Clip Location)
      NOTE:
      • Make sure to slide the inlet No. 2 oil cooler hose until it contacts the hose stopper of the transmission oil cooler.
      • Make sure to align the paint mark of the inlet No. 2 oil cooler hose with the paint mark of the transmission oil cooler.
      • Make sure that the claws of the clip are within the location shown in the illustration.
    4. Temporarily install the No. 1 oil cooler tube sub-assembly without hose to the automatic transaxle case sub-assembly with the 2 bolts.
    5. Using SST, tighten the bolt (A).
      • SST: 09961-00950

      Specified tightening torque

      Torque: 13.5 N*m (138 kgf*cm, 10 ft.*lbf)

      HINT:

      • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

        Refer to PRECAUTION [06/2018 - ]

      • When using SST (fulcrum length of 150 mm (5.91 in.)) + torque wrench (fulcrum length of 162 mm (6.38 in.)):

        7.0 N*m (71 kgf*cm, 62 in.*lbf)

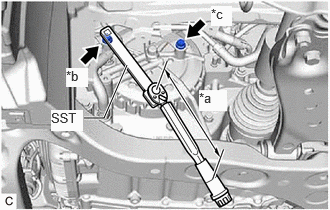

      GTY861631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Torque Wrench Fulcrum Length
      *b Bolt (A)
      *c Bolt (B)
    6. Tighten the bolt (B).

      Torque: 13.5 N*m (138 kgf*cm, 10 ft.*lbf)

  5. CONNECT INLET NO. 1 OIL COOLER HOSE
    1. Connect the inlet No. 1 oil cooler hose to the No. 1 oil cooler outlet tube sub-assembly and slide the clip to secure it.

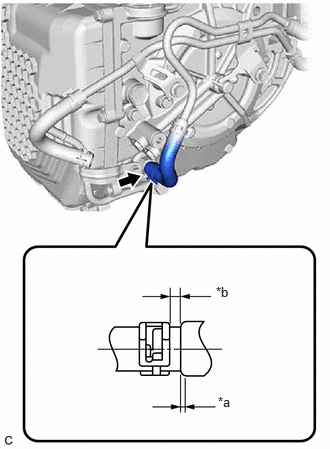

      GTY877122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 3 mm (0 to 0.118 in.)
      *b 2 to 7 mm (0.0787 to 0.276 in.)
      NOTE:

      Make sure to slide the inlet No. 1 oil cooler hose until it contacts the hose stopper of the No. 1 oil cooler outlet tube sub-assembly.

  6. CONNECT OUTLET NO. 1 OIL COOLER HOSE
    1. Connect the outlet No. 1 oil cooler hose to the oil cooler union sub-assembly and slide the clip to secure it.

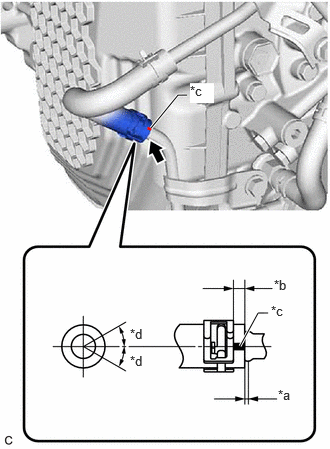

      GTY872585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 0 to 3 mm (0 to 0.118 in.)
      *b 2 to 7 mm (0.0787 to 0.276 in.)
      *c Paint Mark (Left Side of Vehicle)
      *d 30° (Paint Mark Location)
      NOTE:
      • Make sure to slide the outlet No. 1 oil cooler hose until it contacts the hose stopper of the oil cooler union sub-assembly.
      • Make sure that the paint mark of the outlet No. 1 oil cooler hose is within the location shown in the illustration.
  7. INSTALL BATTERY CLAMP SUB-ASSEMBLY

    Refer to PROCEDURE - Step 43 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 44 [08/2021 - ]

  8. INSTALL ECM

    Refer to INSTALLATION [08/2020 - ]

  9. INSTALL BATTERY

    Refer to INSTALLATION [08/2020 - ]

  10. ADD ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  11. ADJUST AUTOMATIC TRANSAXLE FLUID

    Refer to ADJUSTMENT [08/2020 - ]

  12. INSPECT FOR AUTOMATIC TRANSAXLE FLUID LEAK
  13. INSPECT FOR COOLANT LEAK

    Refer to PROCEDURE - Step 1

  14. INSTALL FRONT FENDER APRON SEAL LH

    Refer to PROCEDURE - Step 69 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 70 [08/2021 - ]

  15. INSTALL NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 71 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 72 [08/2021 - ]

  16. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 72 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 73 [08/2021 - ]

  17. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 73 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 74 [08/2021 - ]

  18. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 74 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 75 [08/2021 - ]

  19. INSTALL FRONT WHEEL LH

    Refer to INSTALLATION [06/2018 - ]
