Components [08/2020 - ]
WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.

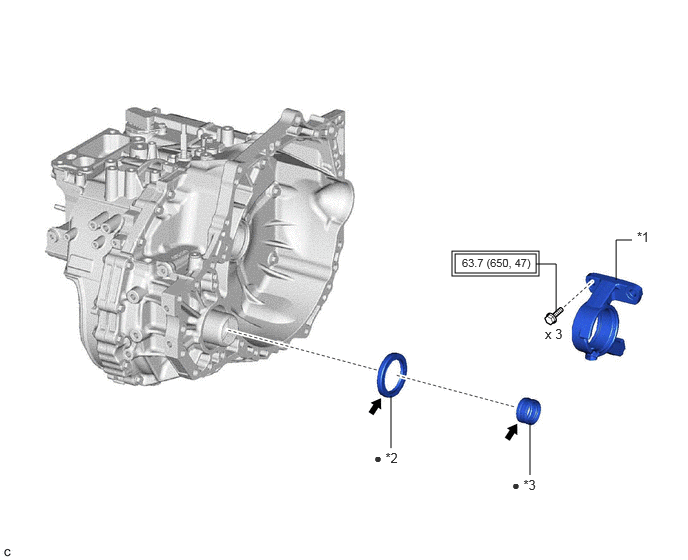

Fig 1: Differential Oil Seal (For RH Side) Replacement Components With Torque Specifications [08/2020 - ]
| *1 | DRIVE SHAFT BEARING BRACKET | *2 | DIFFERENTIAL SIDE OIL SEAL |
| *3 | FRONT DRIVE SHAFT OIL SEAL RH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | • | Non-reusable part | |
| MP grease | - | - |
