Components [08/2020 - ]

WARNING: This page is about a different car, the 2024 Lexus ES 250, 2023 Lexus ES 250, 2022 Lexus ES 250, and 2021 Lexus ES 250. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Automatic Transaxle Assembly Components With Torque Specifications [08/2020 - ] (1 Of 5)
GTY958611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 VACUUM HOSE *2 FLOW SHUTTING VALVE (NO. 1 WATER BY-PASS HOSE)
*3 WATER BY-PASS HOSE ASSEMBLY *4 STEERING GEAR HEAT INSULATOR
*5 WIRE HARNESS *6 FRONT FRAME ASSEMBLY
*7 TRANSMISSION BREATHER CLAMP *8 HOSE CLAMP
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Fig 2: Automatic Transaxle Assembly Components With Torque Specifications [08/2020 - ] (2 Of 5)
GTY957868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FLYWHEEL HOUSING UNDER COVER *2 DRIVE PLATE AND TORQUE CONVERTER ASSEMBLY SETTING BOLT
*3 BREATHER PLUG HOSE *4 FLYWHEEL HOUSING SIDE COVER
*5 STARTER ASSEMBLY *6 FUEL DELIVERY GUARD
*7 FUEL PUMP PROTECTOR *8 FRONT ENGINE MOUNTING BRACKET
*9 AUTOMATIC TRANSAXLE ASSEMBLY *10 TORQUE CONVERTER ASSEMBLY
*11 BREATHER PLUG SUB-ASSEMBLY *12 NO. 2 ENGINE WIRE
*a BLACK COLOR: x 1
SILVER COLOR: x 5		 - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent Toyota Genuine Clutch Spline Grease or equivalent
MP grease * Precoated part
Fig 3: Automatic Transaxle Assembly Components With Torque Specifications [08/2020 - ] (3 Of 5)
GTY958637Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 REAR NO. 2 ENGINE MOUNTING INSULATOR *2 PROPELLER SHAFT HEAT INSULATOR
*3 REAR ENGINE MOUNTING BRACKET SUB-ASSEMBLY *4 OUTLET NO. 1 OIL COOLER HOSE
*5 INLET NO. 1 OIL COOLER HOSE *6 NO. 1 OIL COOLER TUBE SUB-ASSEMBLY WITHOUT HOSE
*7 TRANSMISSION OIL COOLER *8 NO. 1 TRANSMISSION CONTROL CABLE BRACKET
*9 REAR NO. 2 ENGINE MOUNTING BRACKET *10 INLET NO. 2 OIL COOLER HOSE
*11 OUTLET NO. 2 OIL COOLER HOSE *12 REAR ENGINE MOUNTING BRACKET
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque

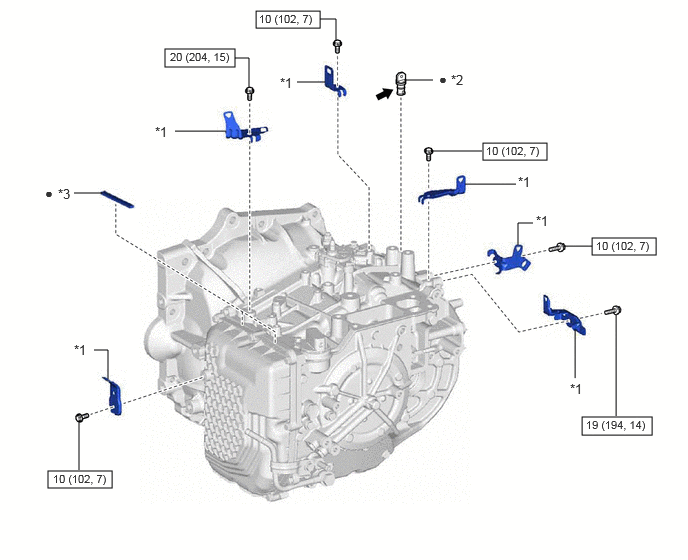

Fig 4: Automatic Transaxle Assembly Components With Torque Specifications [08/2020 - ] (4 Of 5)
GTY958697Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 WIRE HARNESS CLAMP BRACKET *2 TRANSMISSION CASE PLUG ASSEMBLY
*3 TRANSMISSION VIBRATION CONTROL RUBBER - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
Toyota Genuine ATF WS - -

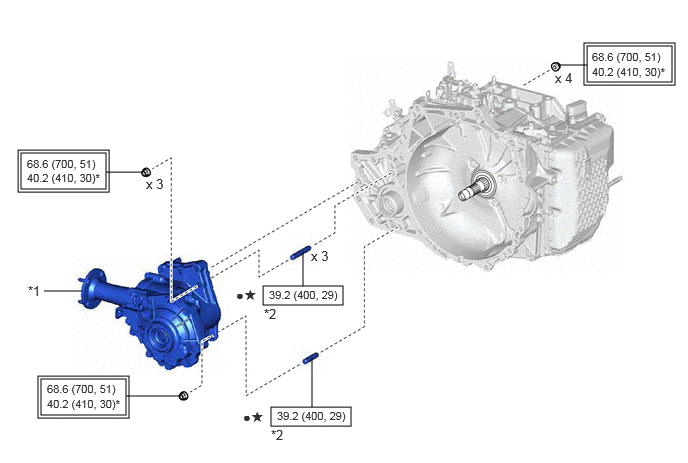

Fig 5: Automatic Transaxle Assembly Components With Torque Specifications [08/2020 - ] (5 Of 5)
GTY958619Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 TRANSFER ASSEMBLY *2 TRANSFER AND TRANSAXLE SETTING STUD BOLT
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) N*m (kgf*cm, ft.*lbf): Specified torque
* For use with SST and a union nut wrench • Non-reusable part
* Precoated part - -
