Components [08/2021 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

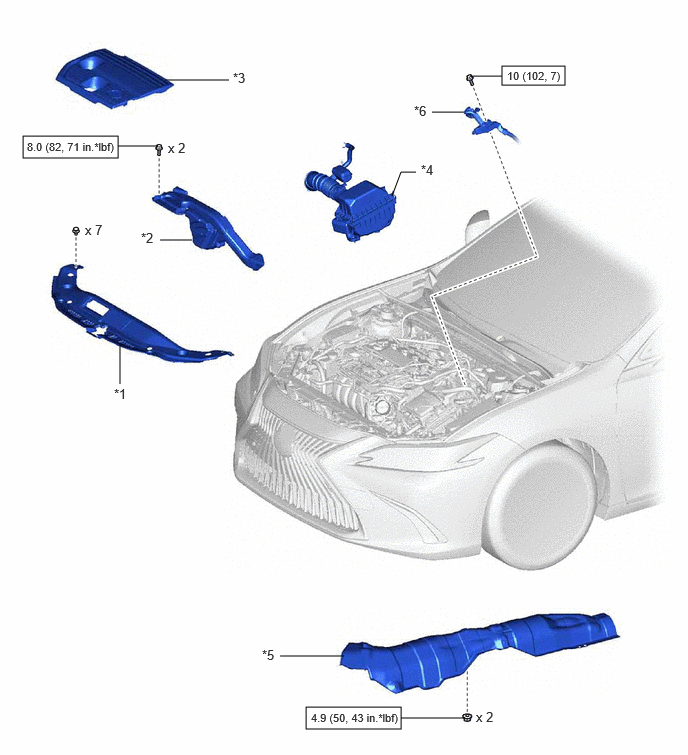

Fig 1: Transmission Control Cable Replacement Components With Torque Specifications [08/2021 - ] (1 Of 2)
| *1 | COOL AIR INTAKE DUCT SEAL | *2 | INLET AIR CLEANER ASSEMBLY |
| *3 | NO. 1 ENGINE COVER SUB-ASSEMBLY | *4 | AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE |
| *5 | FRONT LOWER NO. 1 FLOOR HEAT INSULATOR | *6 | ENGINE ROOM MAIN WIRE |
| N.m (kgf/cm, ft.lbf): Specified torque | - | - |

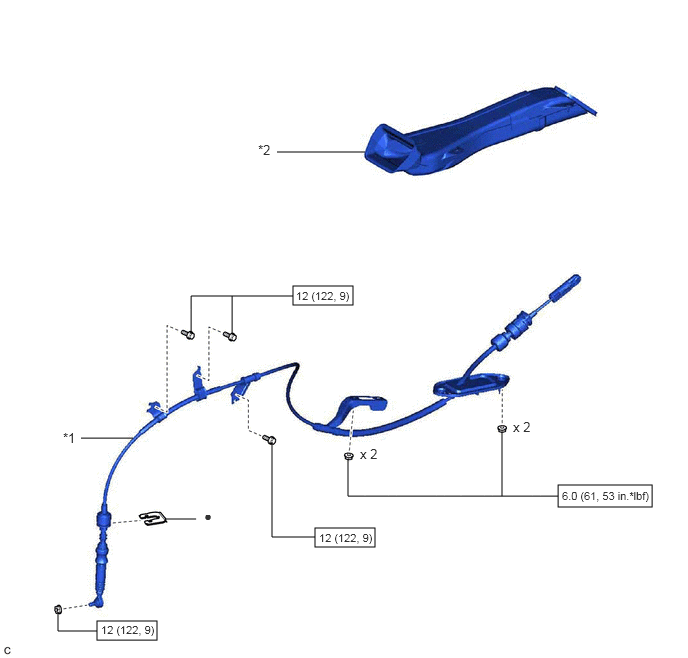

Fig 2: Transmission Control Cable Replacement Components With Torque Specifications [08/2021 - ] (2 Of 2)
| *1 | TRANSMISSION CONTROL CABLE ASSEMBLY | *2 | NO. 1 CONSOLE BOX DUCT |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
