Components [09/2022 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

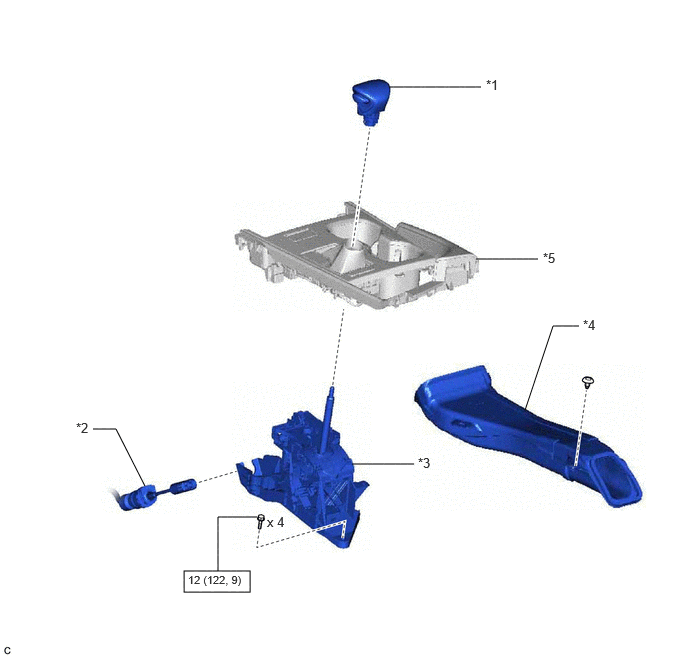

| *1 |
SHIFT LEVER KNOB SUB-ASSEMBLY |
*2 |
TRANSMISSION CONTROL CABLE ASSEMBLY |
| *3 |
TRANSMISSION FLOOR SHIFT ASSEMBLY |
*4 |
NO. 1 CONSOLE BOX DUCT |
| *5 |
REAR UPPER CONSOLE PANEL SUB-ASSEMBLY |
- |
- |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

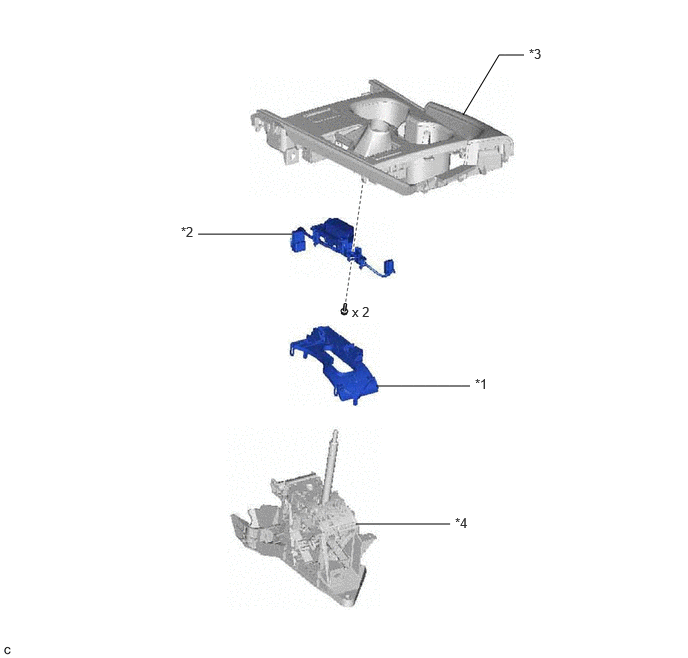

| *1 |
LOWER POSITION INDICATOR HOUSING |
*2 |
SHIFT POSITION INDICATOR |
| *3 |
REAR UPPER CONSOLE PANEL SUB-ASSEMBLY |
*4 |
SHIFT LOCK CONTROL UNIT ASSEMBLY |
