Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. SECURE VEHICLE
    1. Fully apply the parking brake and chock a wheel.
      WARNING:
      • Make sure to apply the parking brake and chock a wheel before performing this procedure.
      • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.
      GTY655852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

  3. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

  4. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

  5. REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY

    Refer to PROCEDURE - Step 10 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 10 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 10 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 10 [09/2022 - ]

  6. REMOVE COOL AIR INTAKE DUCT SEAL

    Refer to PROCEDURE - Step 1 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 1 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 1 [09/2022 - ]

  7. REMOVE INLET AIR CLEANER ASSEMBLY

    Refer to PROCEDURE - Step 6 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 6 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 6 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 6 [09/2022 - ]

  8. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 18 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 18 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 18 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 18 [09/2022 - ]

  9. REMOVE AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE

    Refer to PROCEDURE - Step 7 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

  10. DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
    1. Move the shift lever to N.
    2. Remove the nut and disconnect the transmission control cable assembly from the control shaft lever.
      GTY745666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Using a screwdriver, disengage the 4 claws and disconnect the transmission control cable assembly with the clip from the No. 1 transmission control cable bracket.
      GTY745665Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Using a screwdriver, disengage the 2 claws and remove the clip from the transmission control cable assembly.
      GTY745662Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE SHIFT LEVER POSITION SENSOR

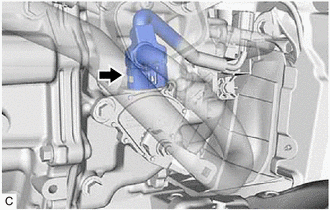

    1. Disconnect the shift lever position sensor connector.
      GTY745276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

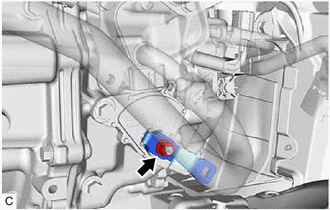

    2. Remove the nut, washer and control shaft lever from the shift lever position sensor.
      GTY745275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

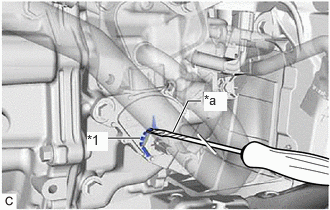

    3. Using a screwdriver with its tip wrapped with protective tape, pry out the tabs of the lock plate.
      GTY772073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lock Plate
      *a Protective Tape

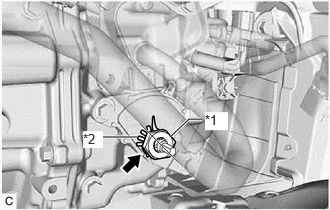

    4. Remove the lock nut and lock plate from the shift lever position sensor.
      GTY753858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Lock Nut
      *2 Lock Plate

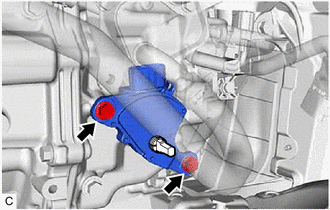

    5. Remove the 2 bolts and shift lever position sensor from the hybrid vehicle transaxle assembly.
      GTY745279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
