Removal [08/2021 - 09/2022]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT WHEEL OPENING EXTENSION PAD RH
Refer to PROCEDURE - Step 8
REMOVE FRONT WHEEL OPENING EXTENSION PAD LH
Refer to PROCEDURE - Step 7
REMOVE NO. 1 ENGINE UNDER COVER
Refer to PROCEDURE - Step 9
REMOVE NO. 2 ENGINE UNDER COVER ASSEMBLY
Refer to PROCEDURE - Step 10
REMOVE FRONT FENDER APRON SEAL LH
Refer to PROCEDURE - Step 11
REMOVE INVERTER WITH CONVERTER ASSEMBLY
Refer to REMOVAL [08/2021 - 09/2022]

REMOVE NO. 1 INVERTER COOLING HOSE

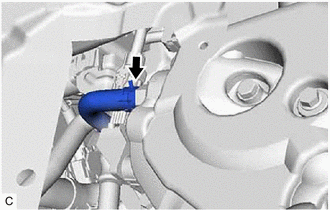

Slide the clip and remove the No. 1 inverter cooling hose from the motor cooling cooler.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

DISCONNECT NO. 5 INVERTER COOLING HOSE
Refer to PROCEDURE - Step 30

REMOVE MOTOR COOLING COOLER

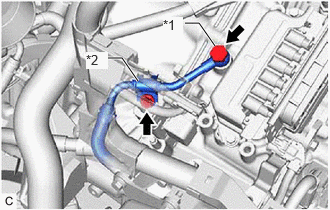

Remove the oil cooler union bolt and gasket to disconnect the No. 2 motor cooling pipe from the hybrid vehicle transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Oil Cooler Union Bolt
*2	No. 1 Oil Cooler Tube Clamp

Remove the bolt and No. 1 oil cooler tube clamp to disconnect the No. 2 motor cooling pipe from the hose bracket.

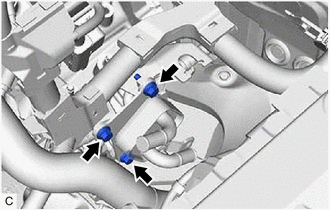

Remove the 3 bolts to disconnect the motor cooling cooler from the No. 1 transmission control cable bracket.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

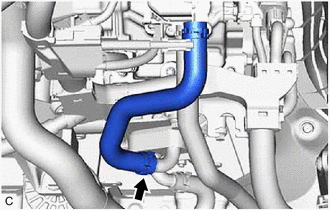

Slide the clip and disconnect the No. 1 motor cooling hose from the transaxle housing tube connector.

NOTE:

Make sure not to remove the No. 1 motor cooling hose from the motor cooling cooler as the motor cooling cooler may be deformed.

REMOVE NO. 2 MOTOR COOLING PIPE

Slide the clip and remove the No. 2 motor cooling pipe from the No. 2 motor cooling hose.

NOTE:

Make sure not to remove the No. 2 motor cooling hose from the motor cooling cooler as the motor cooling cooler may be deformed.
