Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

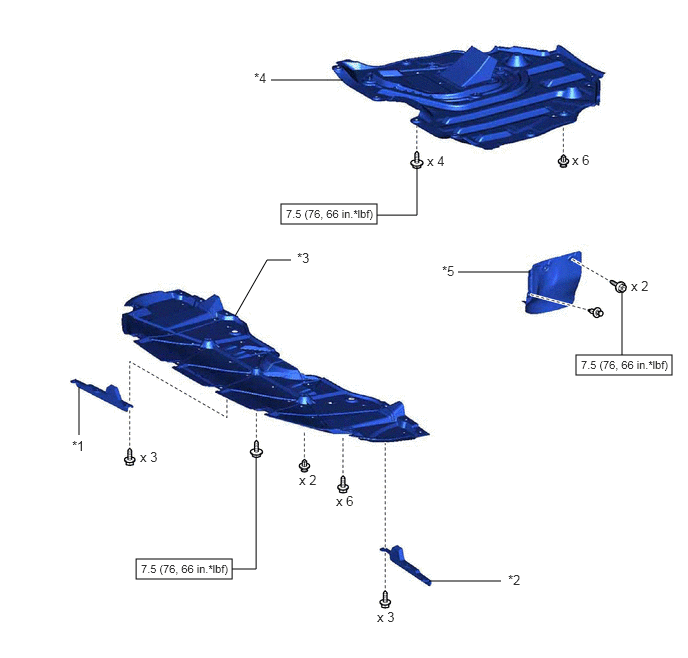

Fig 1: Oil Cooler Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	FRONT WHEEL OPENING EXTENSION PAD RH	*2	FRONT WHEEL OPENING EXTENSION PAD LH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
*5	FRONT FENDER APRON SEAL LH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

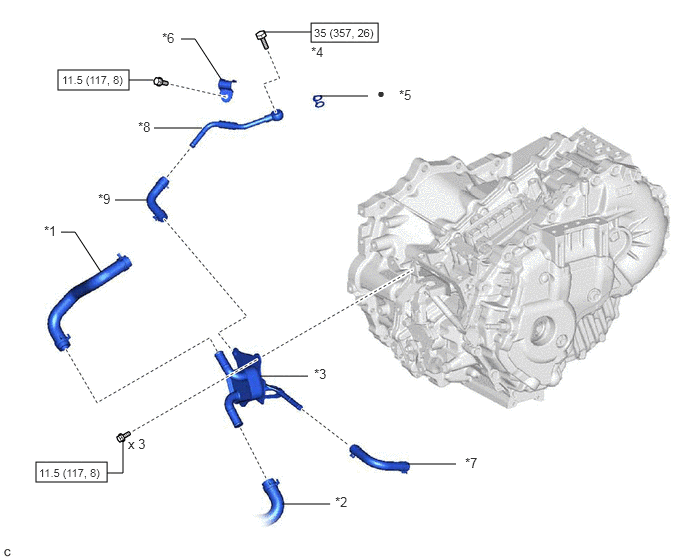

Fig 2: Oil Cooler Replacement Components With Torque Specifications (2 Of 2)

*1	NO. 1 INVERTER COOLING HOSE	*2	NO. 5 INVERTER COOLING HOSE
*3	MOTOR COOLING COOLER	*4	OIL COOLER UNION BOLT
*5	GASKET	*6	NO. 1 OIL COOLER TUBE CLAMP
*7	NO. 1 MOTOR COOLING HOSE	*8	NO. 2 MOTOR COOLING PIPE
*9	NO. 2 MOTOR COOLING HOSE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
