Replacement [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT DRIVE SHAFT ASSEMBLY
Refer to REMOVAL [06/2018 - ]

REMOVE FRONT DRIVE SHAFT OIL SEAL LH

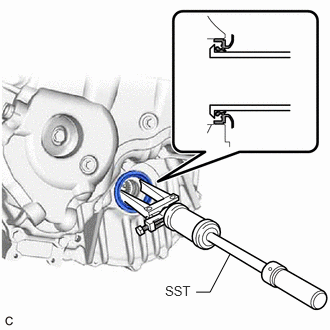

Using SST, remove the front drive shaft oil seal LH from the hybrid vehicle transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

NOTE:

Be careful not to damage the hybrid vehicle transaxle assembly.

REMOVE FRONT DRIVE SHAFT OIL SEAL RH

Using SST, remove the front drive shaft oil seal RH from the hybrid vehicle transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST: 09308-00010

NOTE:

Be careful not to damage the hybrid vehicle transaxle assembly.

INSTALL FRONT DRIVE SHAFT OIL SEAL RH

Using SST and a hammer, install a new front drive shaft oil seal RH to the hybrid vehicle transaxle assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Depth
*b	Inner Lip
*c	Outer Lip

SST: 09316-10010
SST: 09950-70010
1. 09951-07100

Standard Depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTE:

Make sure that the outer lip of the front drive shaft oil seal RH is not pinched by SST.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Correct
*b	Incorrect
*c	Outer Lip

Do not allow foreign matter to attach to the inner lip and outer lip of the front drive shaft oil seal RH.
Do not install the front drive shaft oil seal RH at an angle.
Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal RH.

INSTALL FRONT DRIVE SHAFT OIL SEAL LH

Using SST and a hammer, install a new front drive shaft oil seal LH to the hybrid vehicle transaxle assembly.

*a	Depth
*b	Inner Lip
*c	Outer Lip

SST: 09649-17010
SST: 09950-70010
1. 09951-07100

Standard Depth

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTE:

Make sure that the outer lip of the front drive shaft oil seal LH is not pinched by SST.

*a	Correct
*b	Incorrect
*c	Outer Lip

Do not allow foreign matter to attach to the inner lip and outer lip of the front drive shaft oil seal LH.
Do not install the front drive shaft oil seal LH at an angle.
Do not remove the grease from the inner lip and outer lip of the front drive shaft oil seal LH.

INSTALL FRONT DRIVE SHAFT ASSEMBLY
Refer to INSTALLATION [06/2018 - ]
