Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

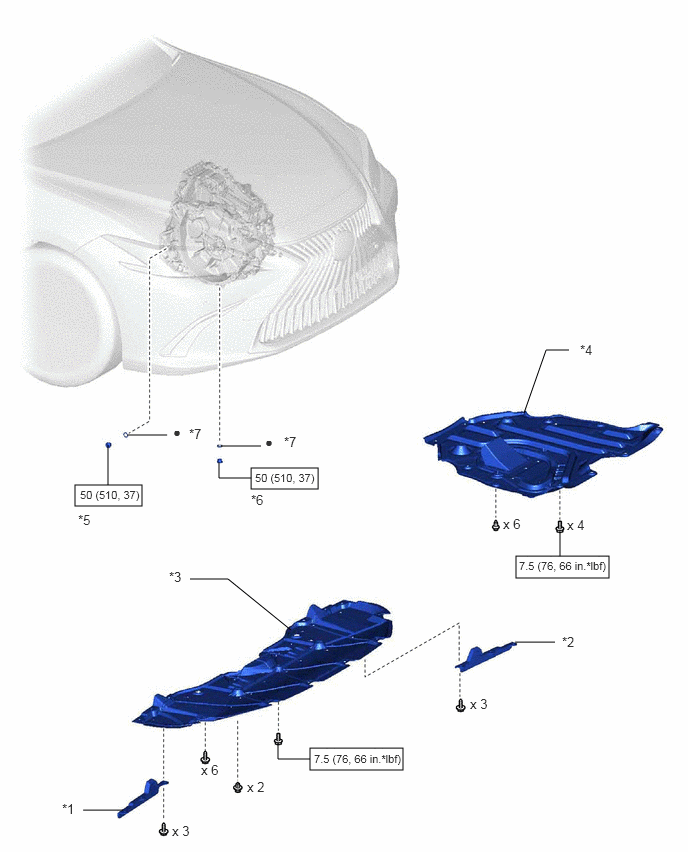

Fig 1: Hybrid Transaxle Fluid Replacement Components With Torque Specifications

*1	FRONT WHEEL OPENING EXTENSION PAD RH	*2	FRONT WHEEL OPENING EXTENSION PAD LH
*3	NO. 1 ENGINE UNDER COVER	*4	NO. 2 ENGINE UNDER COVER ASSEMBLY
*5	FILLER PLUG	*6	DRAIN PLUG
*7	GASKET	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part
