Installation [06/2018 - 08/2021]: Procedure

WARNING: This page is about a different car, the 2021 Lexus ES 300h, 2020 Lexus ES 300h, and 2019 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

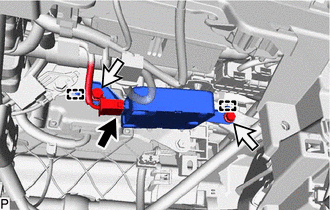

  1. INSTALL VEHICLE APPROACHING SPEAKER CONTROLLER
    1. Connect the connector.
      GTY821322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the 2 guides.
    3. Install the vehicle approaching speaker controller with the 2 bolts.

      Torque: 12.5 N*m (127 kgf*cm, 9 ft.*lbf)

  2. INSTALL RADIO RECEIVER ASSEMBLY WITH SWITCH

    Refer to INSTALLATION [06/2018 - 08/2020] , or refer to INSTALLATION [08/2020 - 09/2022]
