Removal [08/2020 - 08/2021]: Procedure

WARNING: This page is about a different car, the 2021 Lexus ES 300h, 2020 Lexus ES 300h, and 2019 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE NO. 2 VEHICLE APPROACHING SPEAKER ASSEMBLY
    1. Remove the nut.

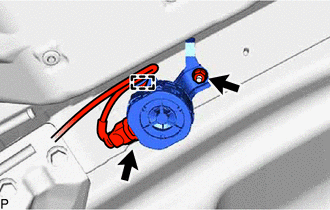

      GTY954037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector.
    3. Disengage the clamp to remove the No. 2 vehicle approaching speaker assembly.
