Removal [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 7 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 7 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 7 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 7 [09/2022 - ]

  2. REMOVE FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 8 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 8 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 8 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 8 [09/2022 - ]

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 9 [06/2018 - 08/2020] , or refer to PROCEDURE - Step 9 [08/2020 - 08/2021] , or refer to PROCEDURE - Step 9 [08/2021 - 09/2022] , or refer to PROCEDURE - Step 9 [09/2022 - ]

  4. DRAIN COOLANT (for Inverter)

    Refer to PROCEDURE - Step 1

  5. REMOVE INVERTER WATER PUMP ASSEMBLY

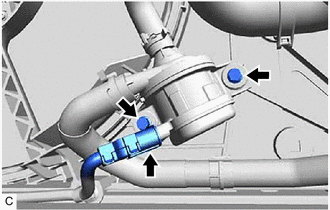

    1. Disconnect the inverter water pump assembly connector.
      NOTE:

      To prevent coolant from entering the inverter water pump assembly connector, perform the following procedure.

      Apply insulating tape to the connectors of the wire harness and inverter water pump assembly.

      GTY763000Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

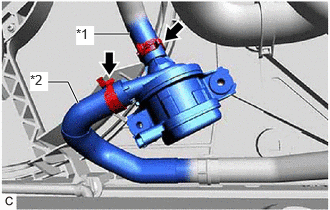

    2. Remove the 2 bolts to remove the inverter water pump assembly from the fan shroud assembly.
    3. Slide the 2 clips and disconnect the No. 2 inverter cooling hose and No. 3 inverter cooling hose to remove the inverter water pump assembly.
      GTY751332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Inverter Cooling Hose
      *2 No. 3 Inverter Cooling Hose
      NOTE:
      • Put pieces of cloth into the pipes and disconnected hoses or cover the pipes and hoses with plastic bags to prevent foreign matter from entering the inverter water pump assembly and inverter cooling system.
      • Do not apply excessive force to the hoses.
      • If the inverter water pump assembly has been struck or dropped, replace it.
