Installation [06/2018 - ]: Procedure

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL INVERTER WATER PUMP ASSEMBLY

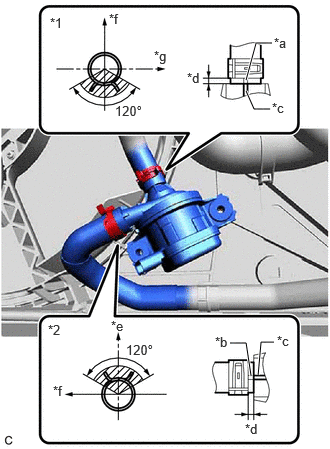

    1. Connect the No. 2 inverter cooling hose and No. 3 inverter cooling hose to the inverter water pump assembly and slide the 2 clips to secure them.
      GTY771244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Inverter Cooling Hose
      *2 No. 3 Inverter Cooling Hose
      *a Alignment Mark (Red)
      *b Alignment Mark (Green)
      *c Rib
      *d 2 to 7 mm (0.0787 to 0.276 in.)
      *e Up
      *f Front of Vehicle
      *g RH Side
      NOTE:
      • Make sure to align the alignment marks of the hoses with the ribs of the inverter water pump assembly.
      • To prevent foreign matter from entering the inverter water pump assembly and inverter cooling system, do not remove the pieces of cloth from the pipes and disconnected hoses until installation.
      • If the inverter water pump assembly has been struck or dropped, replace it.

      HINT:

      Make sure that the clips are positioned as shown in the illustration.

    2. Temporarily install the inverter water pump assembly to the fan shroud assembly with the 2 bolts.
    3. Fully tighten the 2 bolts.

      Torque: 7.0 N.m (71 kgf/cm, 62 in.lbf)

      NOTE:

      As overtightening the bolts may damage the fan shroud assembly, make sure to use a torque wrench.

    4. Connect the inverter water pump assembly connector.
      NOTE:

      If a dustproof cap is installed to the inverter water pump assembly connector, do not remove it until the connector is to be connected.

  2. ADD COOLANT (for Inverter)

    Refer to PROCEDURE - Step 2

  3. INSPECT FOR COOLANT LEAK (for Inverter)

    Refer to PROCEDURE - Step 3

  4. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 43 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 44 [08/2021 - ]

  5. INSTALL FRONT WHEEL OPENING EXTENSION PAD LH

    Refer to PROCEDURE - Step 44 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 45 [08/2021 - ]

  6. INSTALL FRONT WHEEL OPENING EXTENSION PAD RH

    Refer to PROCEDURE - Step 45 [06/2018 - 08/2021] , or refer to PROCEDURE - Step 46 [08/2021 - ]
