Components [06/2018 - ]

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Water Pump With Motor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	NO. 1 ENGINE UNDER COVER	*2	FRONT WHEEL OPENING EXTENSION PAD LH
*3	FRONT WHEEL OPENING EXTENSION PAD RH	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

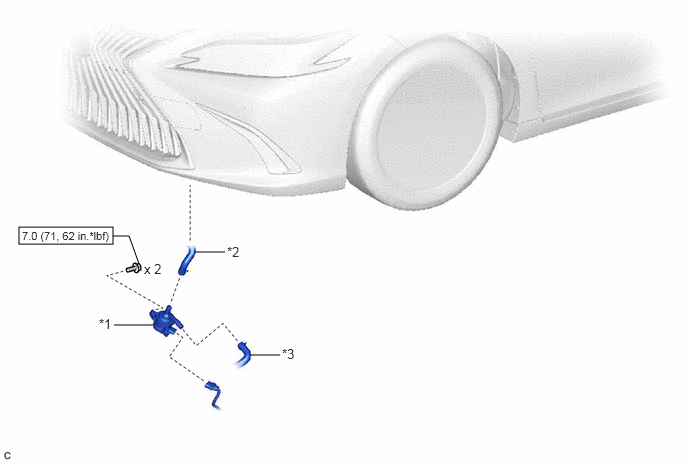

Fig 2: Water Pump With Motor Replacement Components With Torque Specifications (2 Of 2)

*1	INVERTER WATER PUMP ASSEMBLY	*2	NO. 2 INVERTER COOLING HOSE
*3	NO. 3 INVERTER COOLING HOSE	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
