Components [06/2018 - ]
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Lexus ES 300h, 2023 Lexus ES 300h, 2022 Lexus ES 300h, 2021 Lexus ES 300h, and 2020 Lexus ES 300h. However, it is still accessible from the selected car via links, so may be relevant.

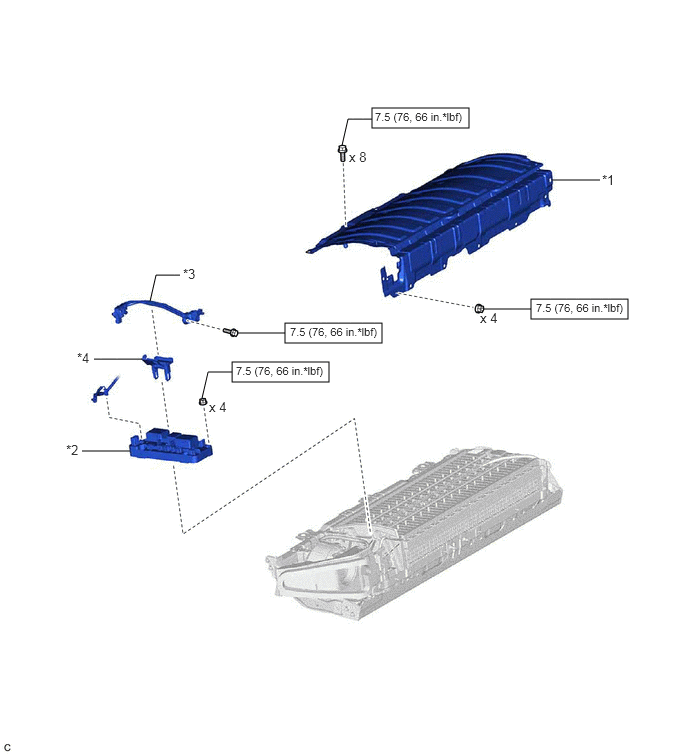

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
UPPER HV BATTERY COVER SUB-ASSEMBLY |
*2 |
HV BATTERY JUNCTION BLOCK ASSEMBLY |
| *3 |
ELECTRIC VEHICLE BATTERY PLUG ASSEMBLY |
*4 |
WIRING HARNESS PROTECTOR |
 |
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |

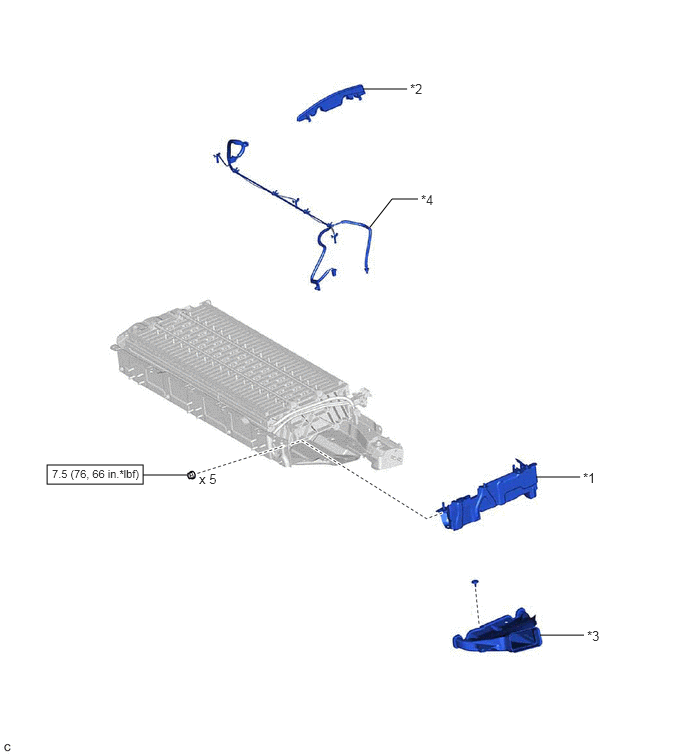

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
| *1 |
NO. 2 HYBRID BATTERY SHIELD SUB-ASSEMBLY |
*2 |
NO. 1 HYBRID BATTERY PACKING |
| *3 |
NO. 1 HV BATTERY INTAKE DUCT LH |
*4 |
HYBRID BATTERY THERMISTOR |
|
N.m (kgf/cm, ft.lbf): Specified torque |
- |
- |
