Recovery Inspection [08/2020 - ]: Procedure

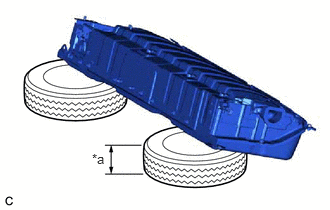

1. Position the HV battery as shown in the illustration and leave it for 5 minutes.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	155 mm (6.10 in.) or more

2. Check that no electrolyte is leaking from the HV battery.

   OK

   There is no electrolyte leaking from the HV battery.

   WARNING:

   • Perform this procedure in an area where the battery will not be exposed to fire.
   • Do not touch the HV battery, unless absolutely necessary, as electrolyte may be leaking.
   NOTE:

   If there is an electrolyte leak, make sure to wear insulated gloves and goggles and clean it using a piece of cloth. Do not leave electrolyte-contaminated cloths unattended. Dispose of them according to law or local regulations.

   Result

   Result
   OK
   NG

Result:

NG

DISCHARGING (WHEN USING THE SALT WATER SOLUTION)

Result:

OK

See step  2

1. Check the previously recorded DTCs which resulted in replacement of the HV battery.

   Result

   Result	Proceed to
   DTC record not available.	A
   The HV battery was replaced due to a reason other than the DTCs listed in the following table.	B
   The HV battery was replaced due to one of the DTCs listed in the following table.	C

   DTC No.
   P1A6017
   P31AA17
   P0C3000
   P31B300
   P1C7D49

Result:

B

See step  5

Result:

C

See step  6

Result:

A

See step  3

1. Measure the voltage according to the value(s) in the table below.

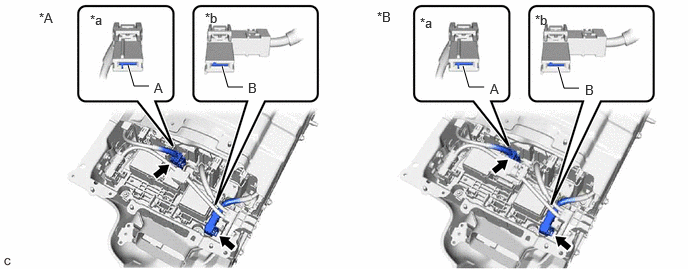

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	Type A	*B	Type B
   *a	No. 1 HV Battery Main Cable (A)	*b	No. 2 HV Battery Main Cable (B)

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   A - B	Always	Below 292.3 V

   WARNING:

   Make sure not to cross the probes of the electrical tester.

   Result

   Result
   OK
   NG

Result:

NG

See step  6

Result:

OK

See step  4

1. Using a megohmmeter set to 500 V, measure the insulation resistance according to the value(s) in the table below.
   NOTE:

   Be sure to set the megohmmeter to 500 V when performing this test. Using a setting higher than 500 V can result in damage to the component being inspected.

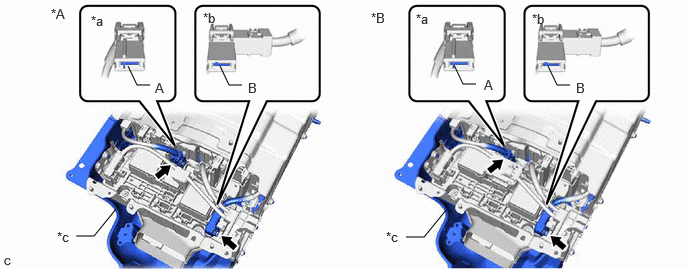

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *A	Type A	*B	Type B
   *a	No. 1 HV Battery Main Cable (A)	*b	No. 2 HV Battery Main Cable (B)
   *c	Battery Outer Case	-	-

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   A - Battery Outer Case	Always	1 MΩ or higher
   B - Battery Outer Case	Always	1 MΩ or higher

   Result

   Result
   OK
   NG

Result:

NG

See step  6

Result:

OK

See step  5

1. Check that the HV battery is not deformed or damaged.

   OK

   The HV battery is not deformed or damaged.

   Result

   Result
   OK
   NG

Result:

OK

RETURN HV BATTERY

Result:

NG

See step  6

1. Check that the orange connectors connected to the battery ECU assembly are not deformed or damaged.

   OK

   The connectors are not deformed or damaged.

   HINT:

   If any of the connectors are damaged, a Li-ion battery discharger will not be able to be connected to the HV battery. Soak the HV battery in a saltwater solution to discharge it.

   Result

   Result
   OK
   NG

Result:

OK

DISCHARGING (WHEN USING THE LI-ION BATTERY DISCHARGER)

Result:

NG

DISCHARGING (WHEN USING THE SALT WATER SOLUTION)
